Scantool Diagnostics

Automatic Transaxle
P0705 Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Ignition "ON" & engine "OFF".
3. Select "Current Data" mode and monitor "Inhibitor Switch" parameter.
4. Change a shift lever from P-range to D-range.

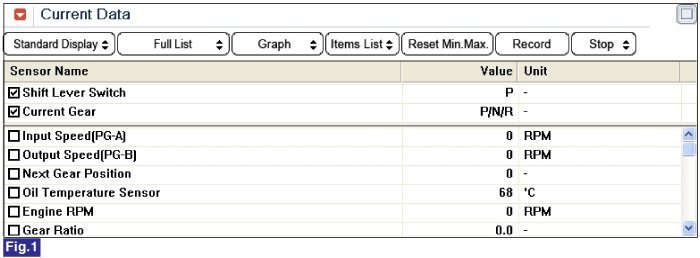

Fig 1) P range

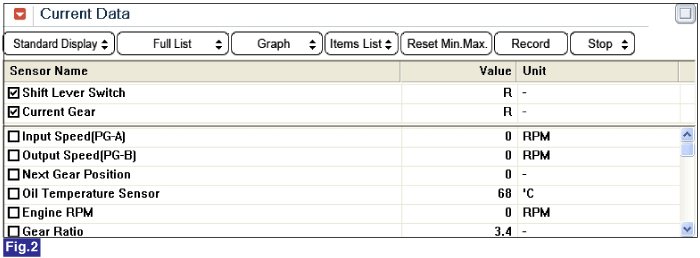

Fig 2) R range
Fig 3) N range
Fig 4) D range

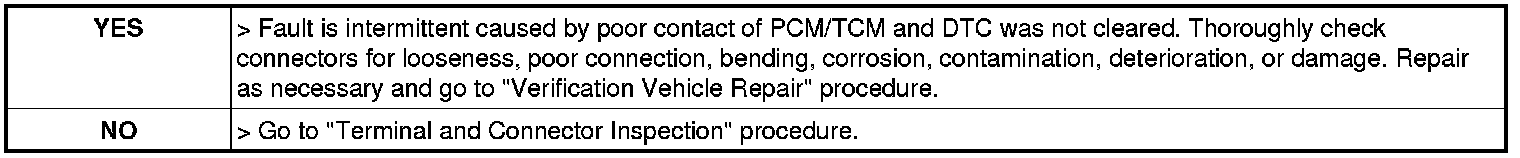

5. Is the Inhibitor switch value chaged in specifications?
