Component Inspection

Automatic Transaxle
P0605 Internal Control Module Read Only Memory(ROM) Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition ON & Engine OFF.
2. Connect scantool to Data Link Connector(DLC).
3. Select "Diagnostic Trouble Codes(DTCs)"mode and monitor "DTC Status" parameter.
4. Clear recorded DTC using Scan tool.
5. After turning IG OFF to IG ON twice or three times, check DTC again and monitor "DTC Status" parameter.

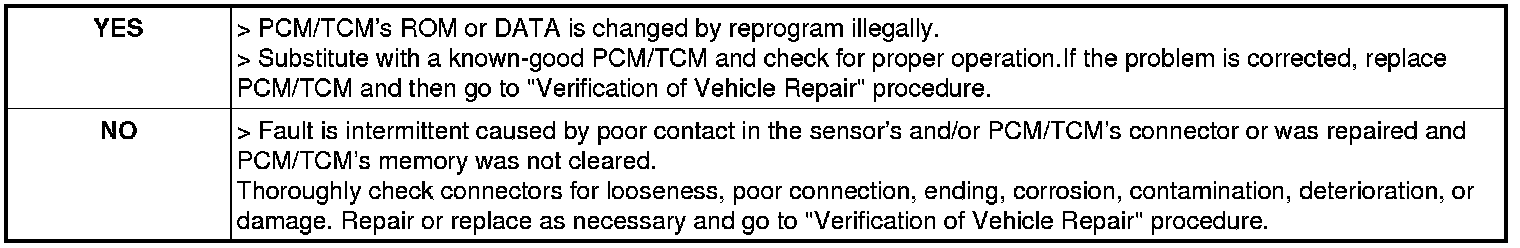

6. Does the scantool show same DTC again ?
