Scantool Diagnostics

Active Air Flap
P0563 System Voltage High - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Start engine and turn the headights and the rear defrost on.
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. In the EV Mode (Idle) and the status of engine idle, keep a 2500RPM and then check the sensor output data.
and then check the sensor output data.

Normal Value :Less than 16 [V]




Fig.1) Engine ON

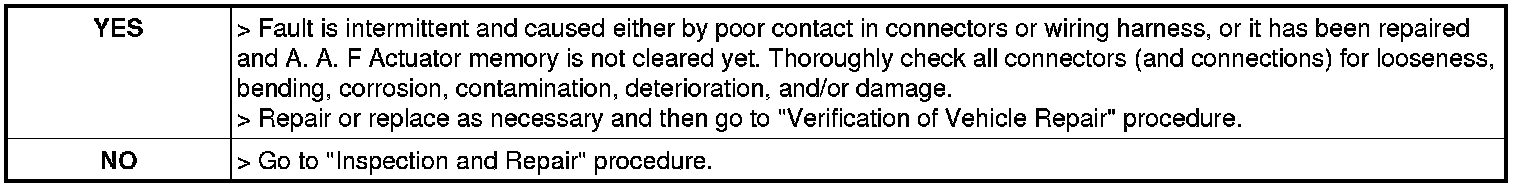

5. Is the data displayed in normal ?
