Active Air Flap
P0563 System Voltage High - General Information

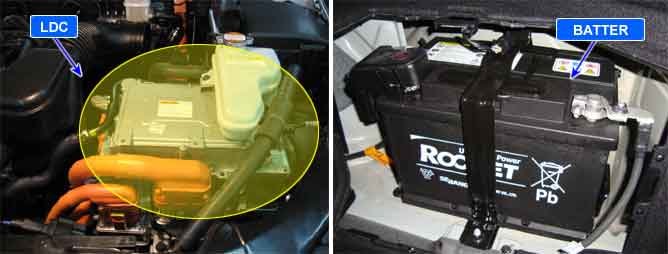

Component Location





Gerneral Description

Detect the status of the battery voltage for A.A.F system in order to operate normally.
If the battery voltage is low voltage, the system is not working. And if battery voltage is high voltage, the AAF actuators may be get damaged.

DTC Description

If the voltage value is higher than the normal value, A.A.F(=Active Air Flap) actuator generates a P0563 fault code.

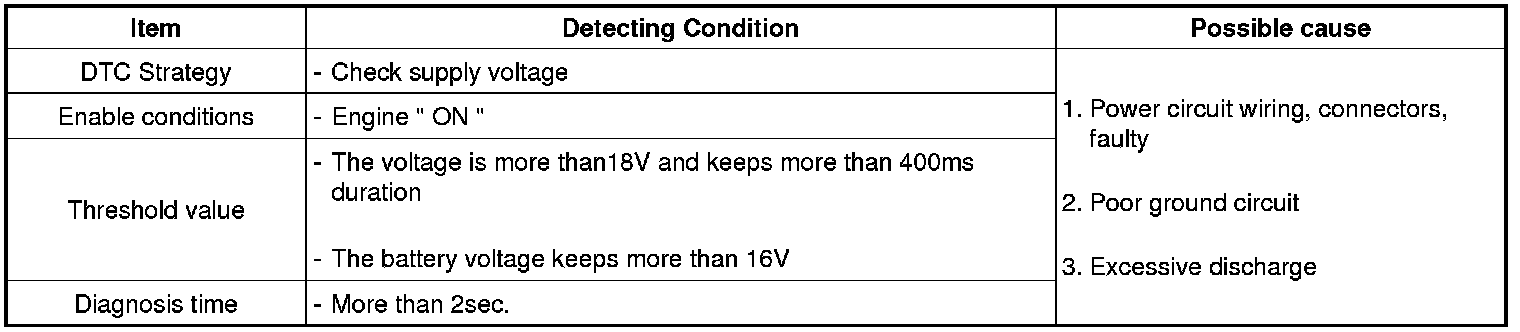

DTC Detecting Condition

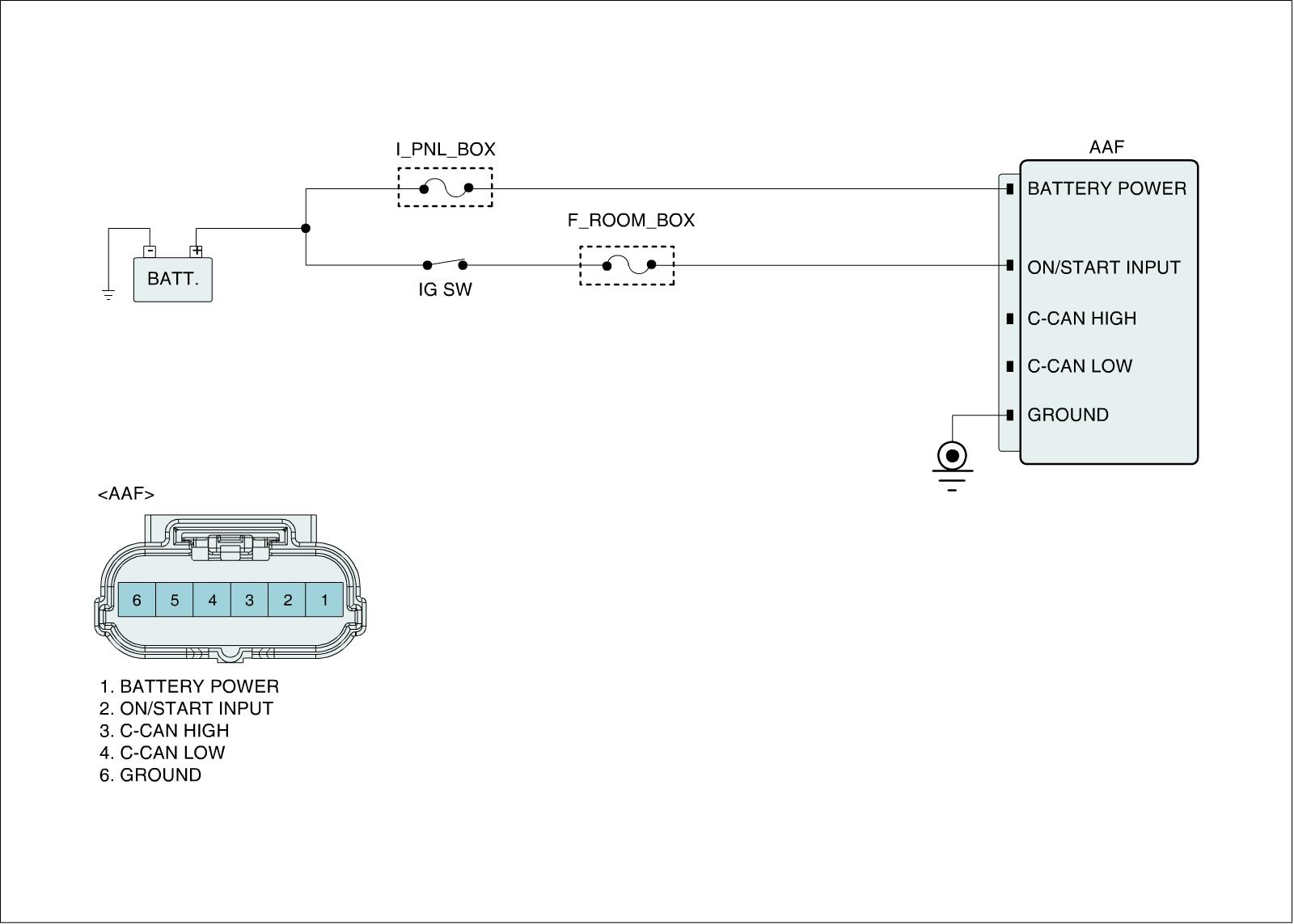

Diagnostic Diagram
