Scantool Diagnostics

HEV Control System
P0562 System Voltage Low - Scantool Diagnostics

Monitor Scantool Data

1. Ignition ON (SSB LED "BLUE"). & Vehicle "STOP".
2. Connect GDS and select "Data Analysis" mode.
3. Selet "Currnet Data"mode and monitor "12V Battery Voltage" parameter.

Specification :

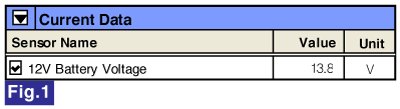

Fig.1) Condition : Gear:P, EV Ready, Engine:OFF

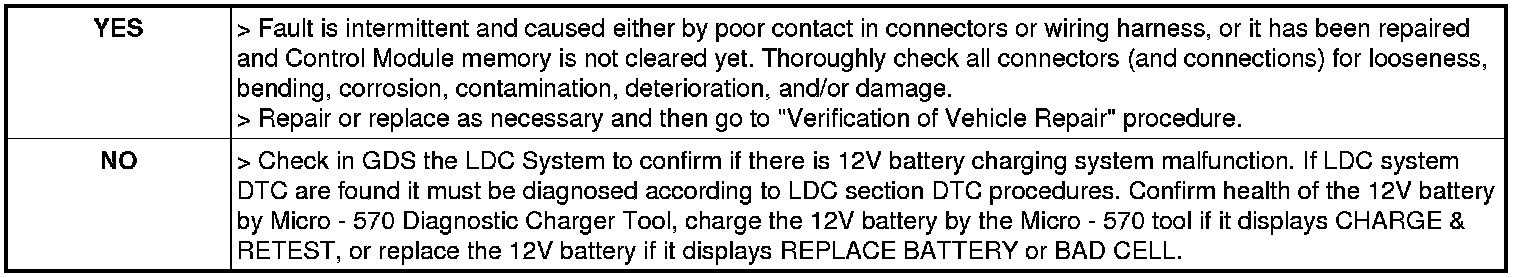

4. Is parameter within specifications?
