W/Harness Inspection

Active Air Flap
P0562 System Voltage Low - Inspection/Repair:_:W/Harness Inspection

W/Harness Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

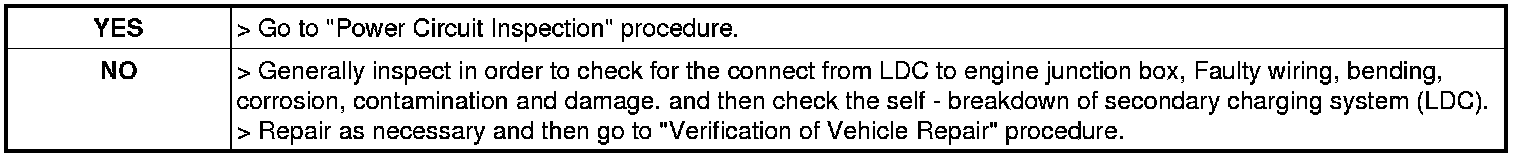

3. Has a problem been found?






Charging System Inspection

1. Engine "ON".
2. Check the Battery voltage in the idle (EV Mode), turn on headlight and hot-wire and measure the voltage between the battery (+) terminal and (-) terminal.
3. While keeping the engine idling , meaure the battery voltage between the battery (+) terminal and (-) terminal.

Specification :less than 16 [V]




4. Is "resistance" display near the specified value?






Power Circuit Inspection

Power Circuit Inspection
1. IG Key "OFF".
2. Disconnect A. A. F connector.
3. IG "ON" & Engine "ON".
4. Measure voltage between terminal A. A. F harness connector and chassis ground.

Specification :less than 16 [V]




5. Is the measured voltage within specifications?





Ground Circuit Inspection
1. IG Key "OFF".
2. Disconnect A. A. F connector.
3. Measure resistance between terminal A.A.F harness connector and chassis ground.

Specification :Approx. 0 Ohms




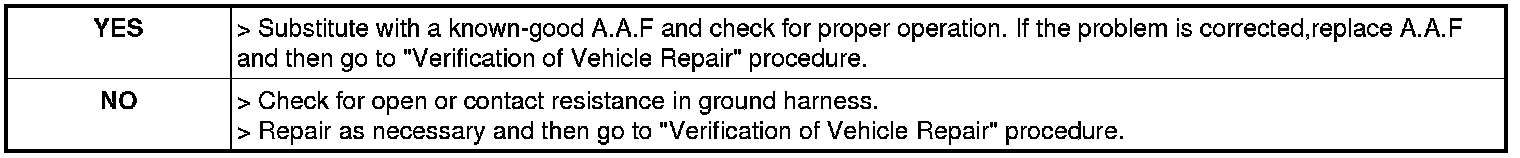

4. Is the measured resistance within specifications?
