P0562 System Voltage Low - Scantool Diagnostics

Monitor Scantool Data

1. IG " ON" and turn "ON" the Headlight and defog SW.
2. Check "Battery Voltage" status in the current Data.
3. In the EV Mode (Idle) and the status of engine idle, keep a 2500RPM for 2min.
and then check the sensor output data.

Normal Value :More than 8.7 [V]




Fig.1) Engine ON

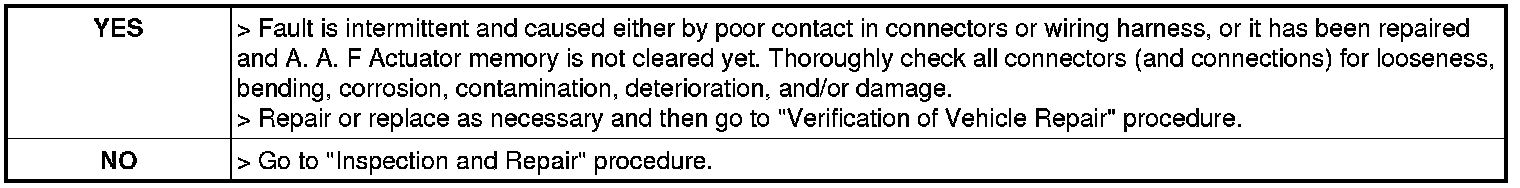

4. Is the data displayed in normal ?
