Component Inspection

HEV Control System
P0504 Brake Switch \'A\' / \'B\' Correlation - Inspection/Repair:_:Component Inspection

Component Inspection

Check STOP LAMP SWITCH
1. Ignition "OFF"
2. Disconnect Stop Lamp Switch harness connector.
3. Measure resistance between Power and Signal NO terminals of Stop Lamp Switch. (Component Side)
4. Measure resistance between Power and Signal NC terminals of Stop Lamp Switch. (Component Side)

Specification :Measure 1 : Infinity
Measure 2 : below 1Ohms.

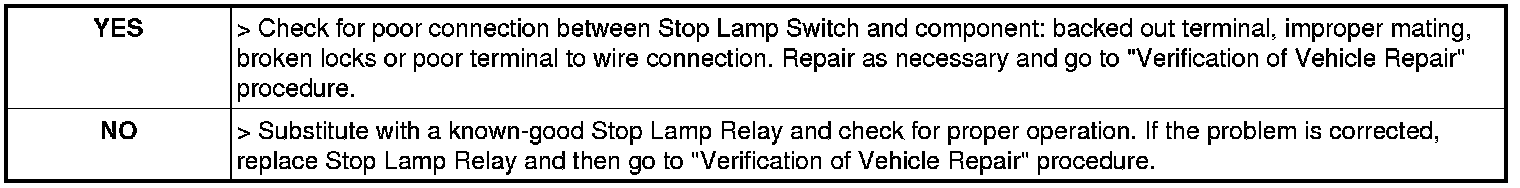

5. Is the measured resistance within specifications?
