General Information

Active Hydraulic Booster
C1807 Sub CAN bus off - General Information

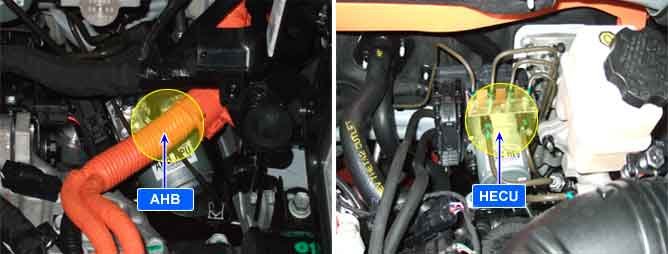

Component Location





General Description

The AHB ECU(Electronic Control Unit) has two CAN hardwares, first is used for power train CAN communication, second(sensor channel) is auxiliary CAN used for communication between AHB ECU and HECU. We call that as sub CAN bus.
The sensor channel CAN hardward is installed in AHB ECU.

DTC Description

The HECU checks the CAN communcation lines for the normal ESC control, and sets this code if an AHB message is not received within 500ms.

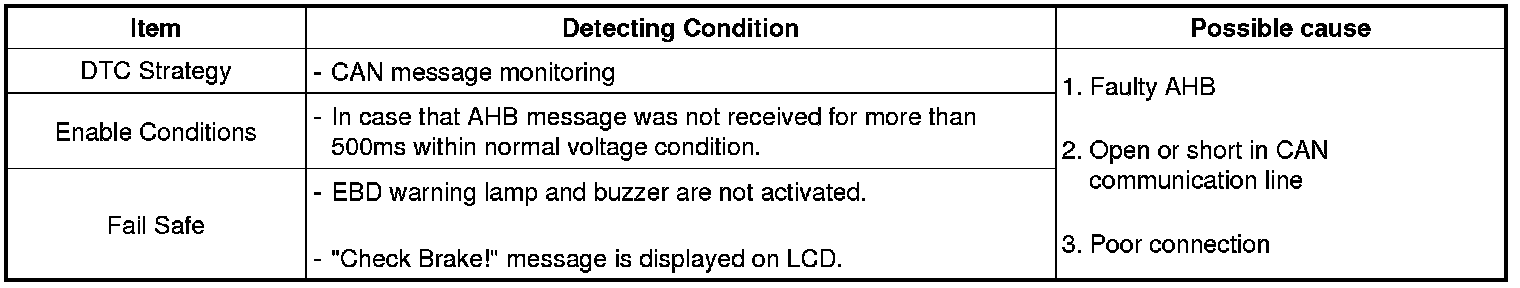

DTC Detecting Condition

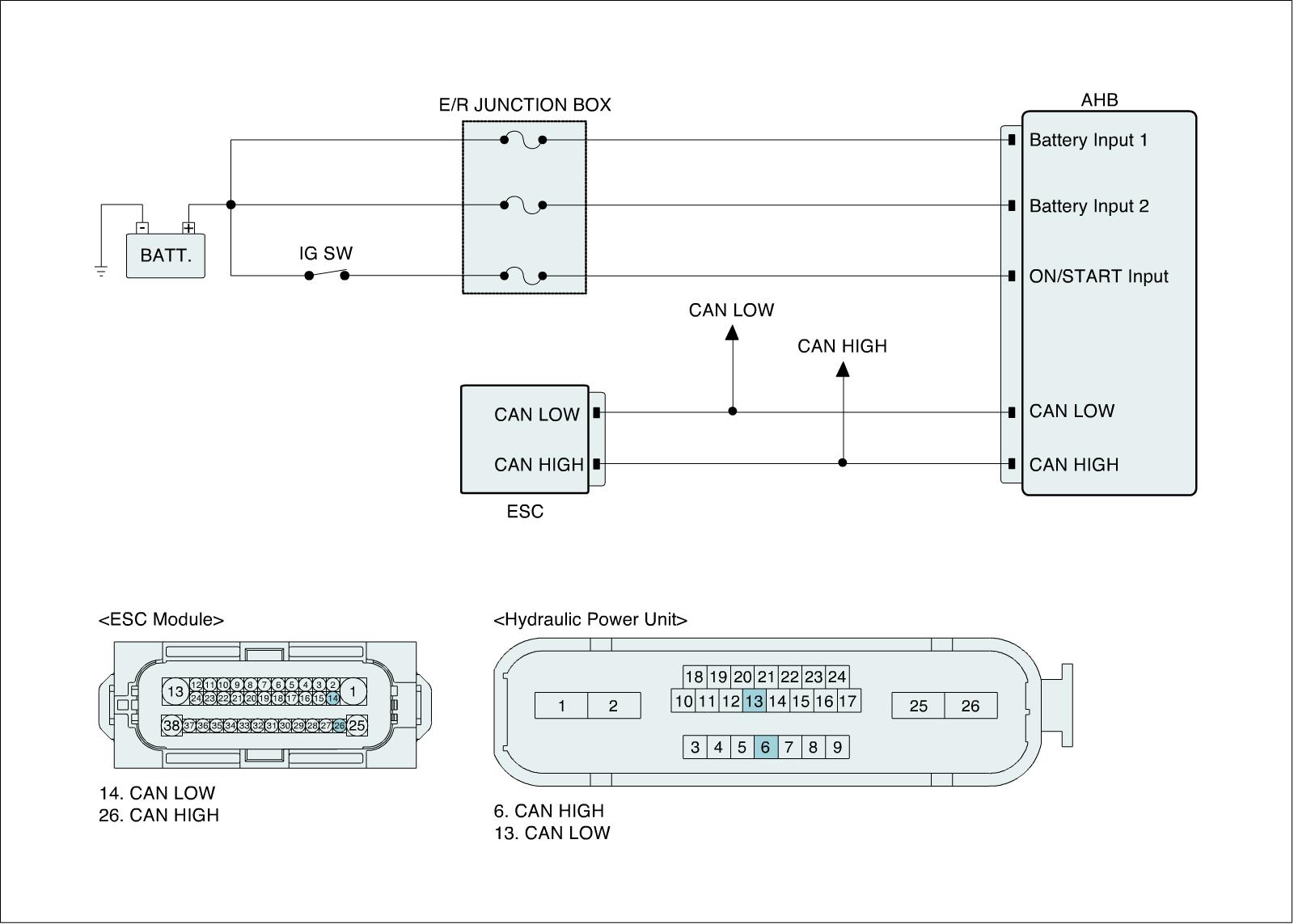

Diagnostic Circuit Diagram
