W/Harness Inspection





Motor Driven Power Steering
C1693 CAN Signal Error VSM - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

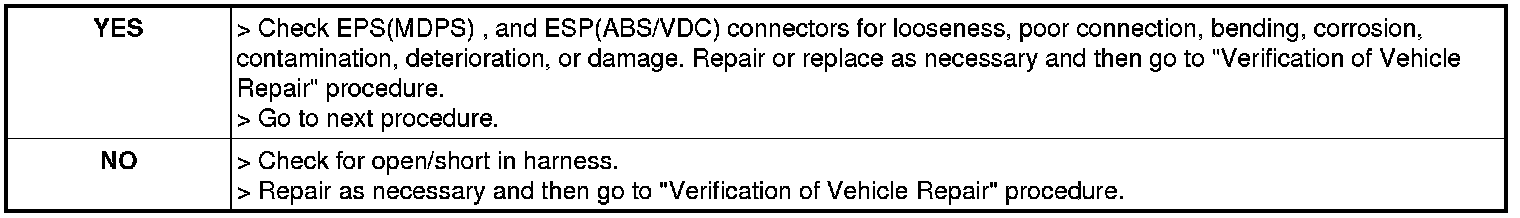

3. Has a problem been found ?





Check open/short to ground in CAN communication line
1. Ignition "OFF"

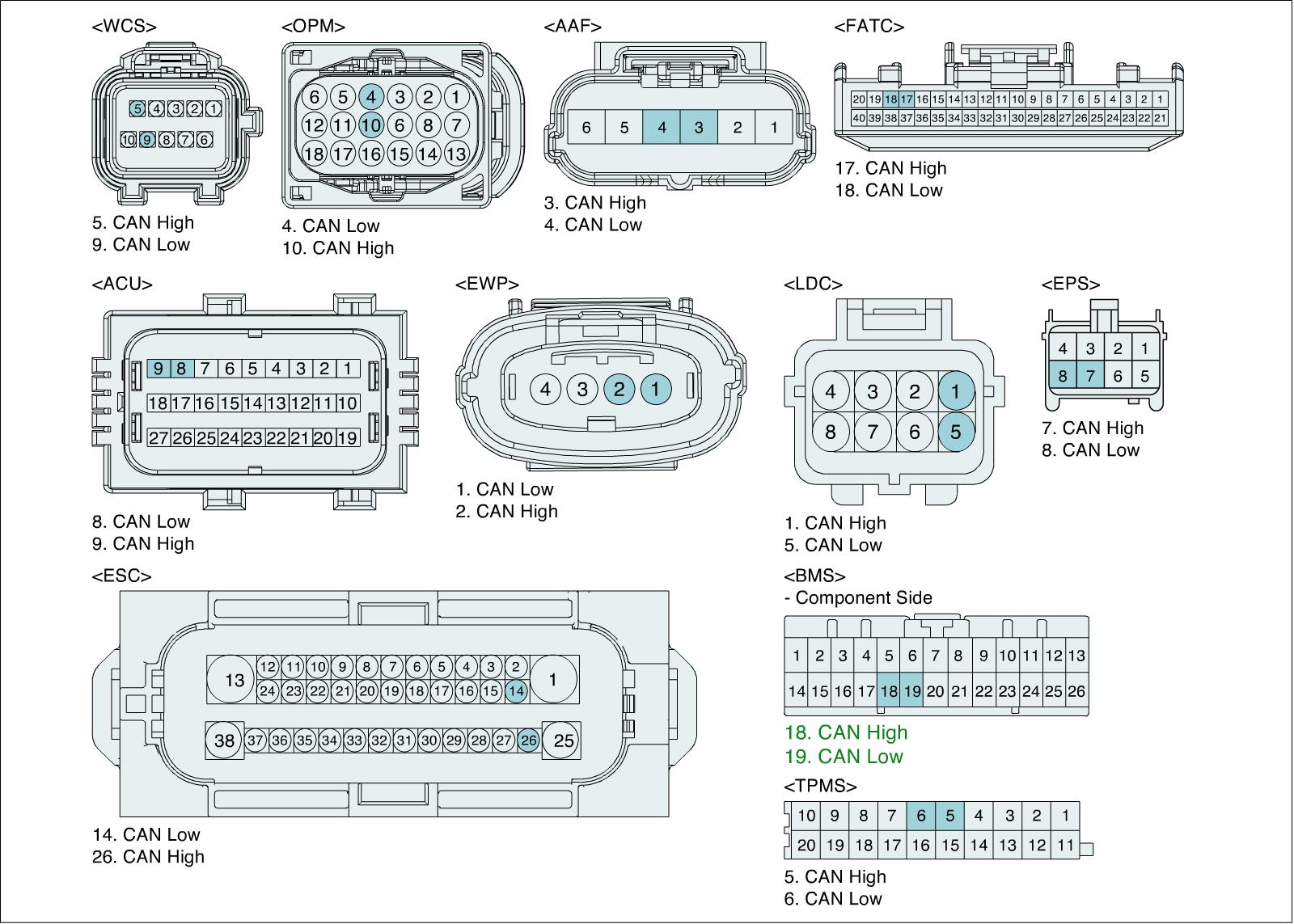

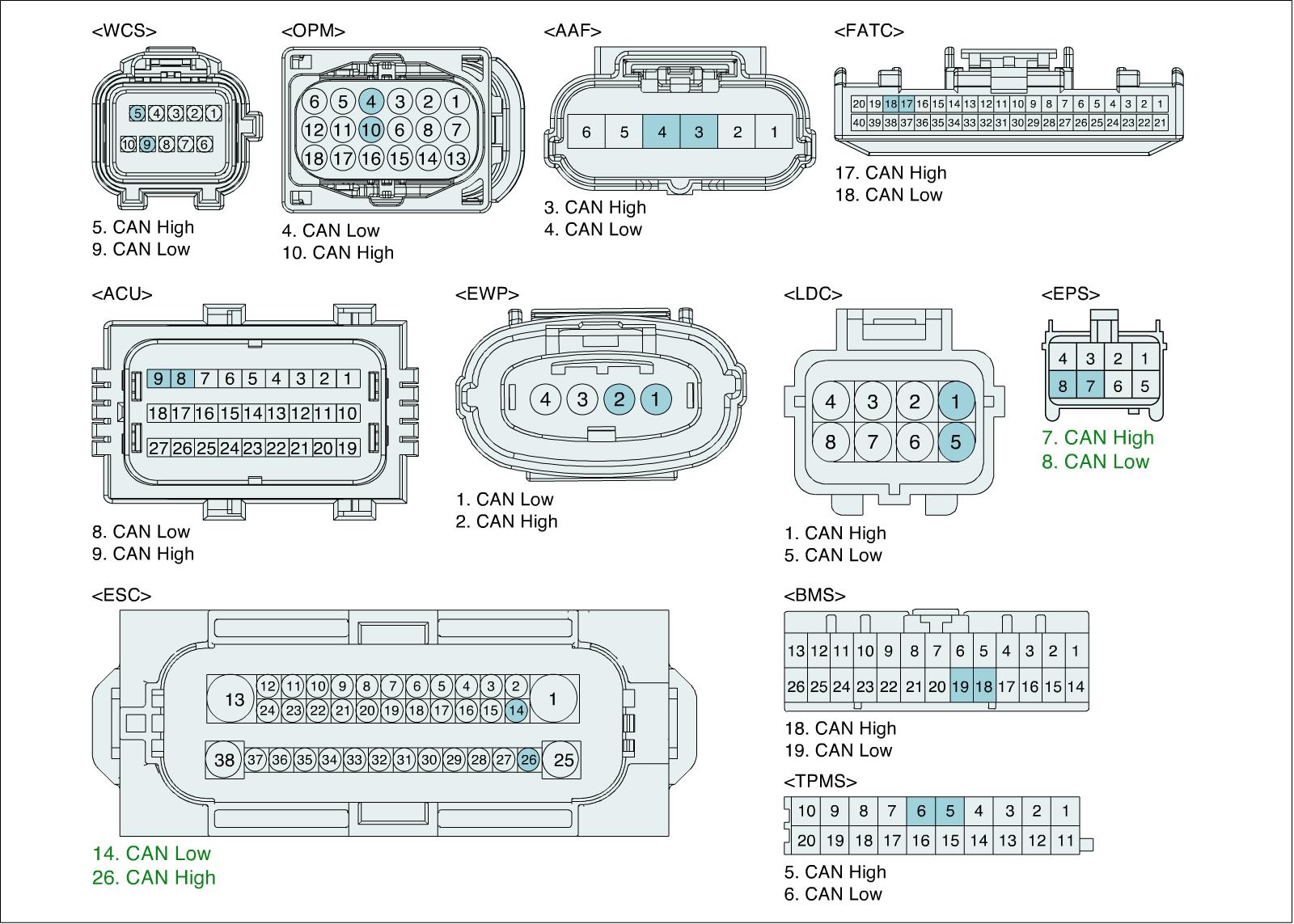

2. Disconnect EPS(MDPS) connector and ESP(ABS/VDC) connector
3. Measure the resistance between CAN-HIGH terminal of EPS(MDPS) harness connector and CAN-HIGH terminal of ESP(ABS/VDC) harness connector.
4. Measure the resistance between CAN-LOW terminal of EPS(MDPS) harness connector and CAN-LOW terminal of ESP(ABS/VDC) harness connector.

Specification :below 1Ohms












5. Is the measured resistance within specification ?

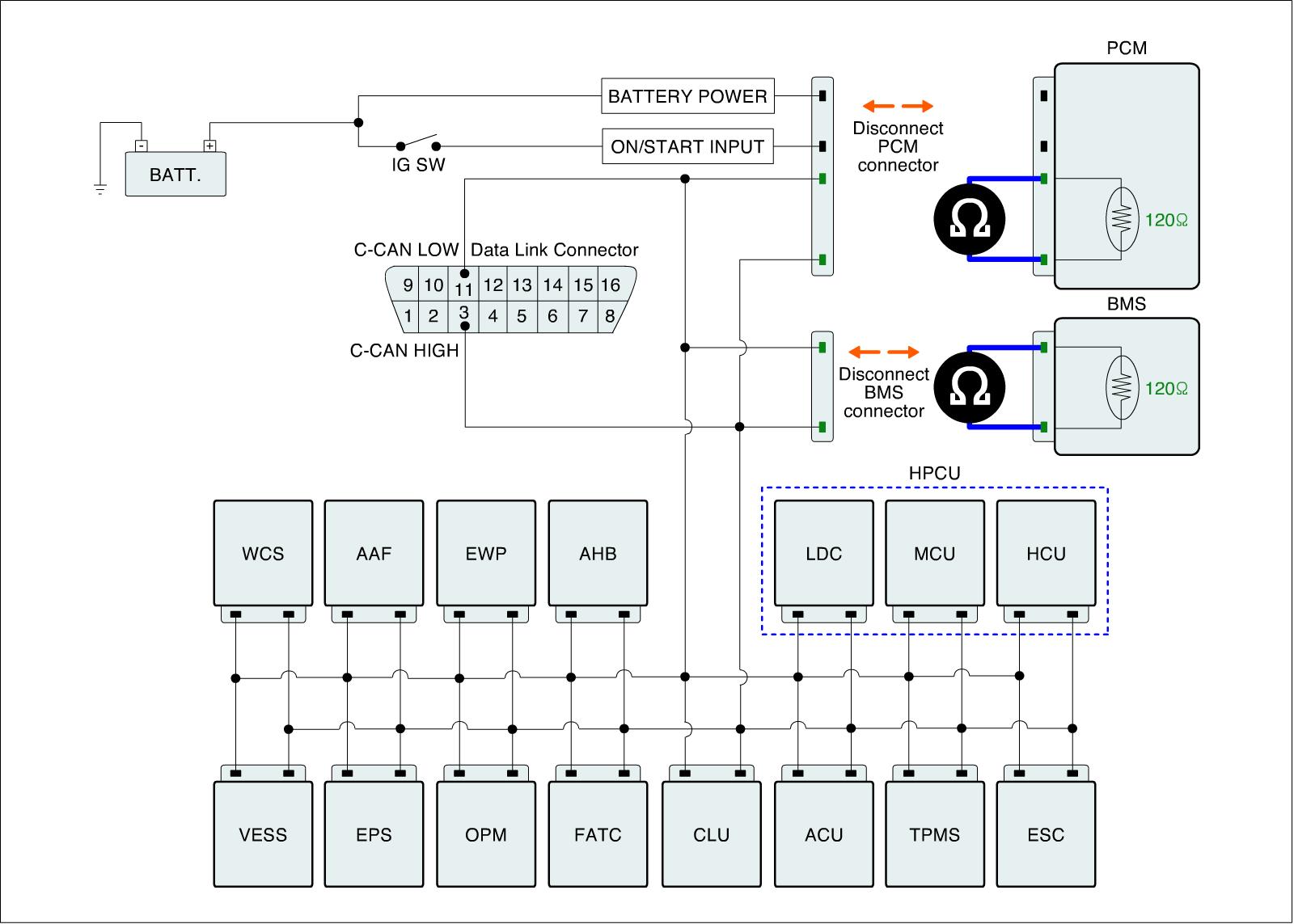

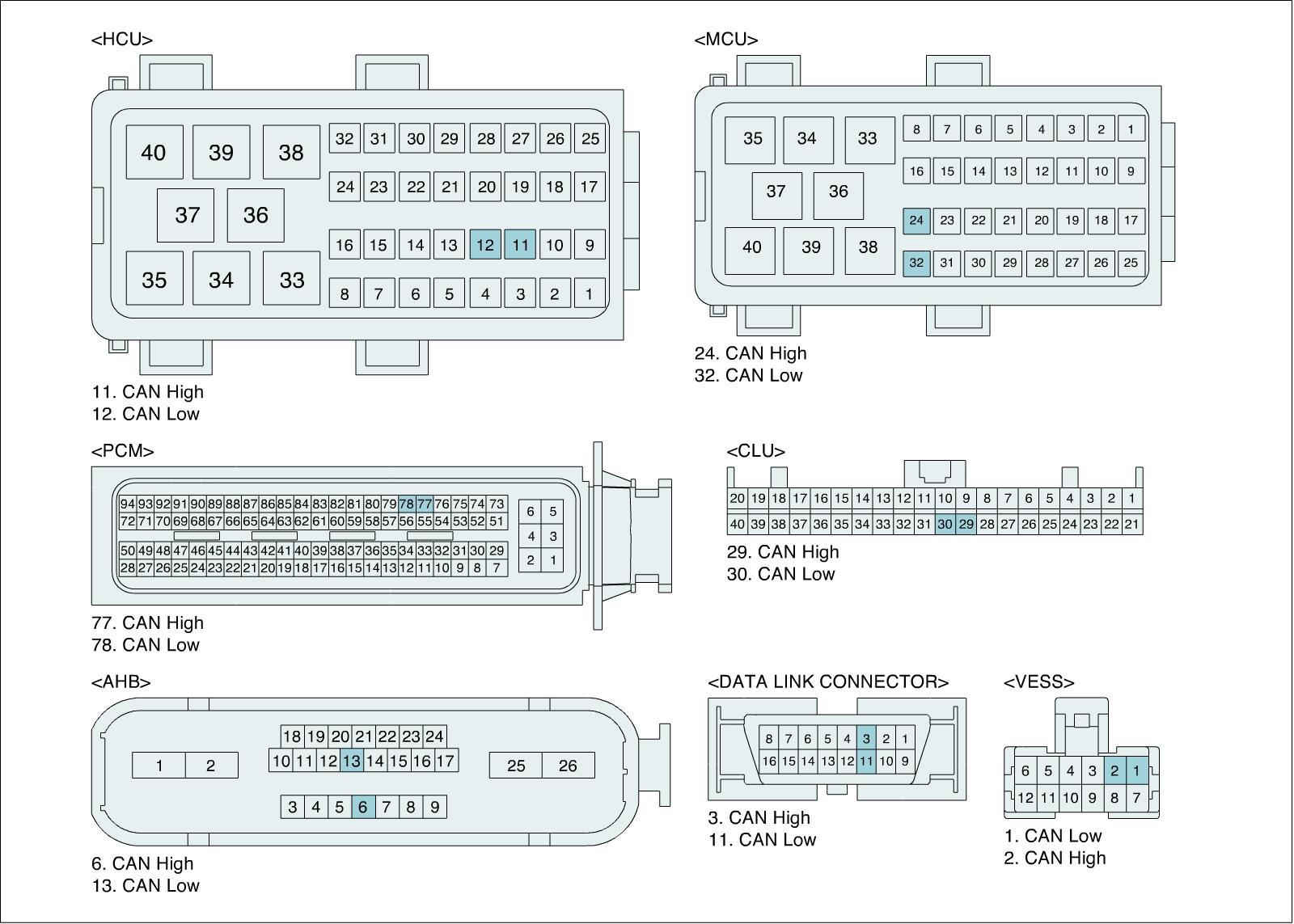

CAN register and communication line inspection 2
1. IG KEY OFF
2. Disconnect PCM connector and BCM connector.
3. Measure resistance between terminal CAN Low and CAN High of PCM.
4. Measure resistance between terminal CAN Low and CAN High of BMS.

Specification :About 120 Ohms












5. Is the measured resistance within specification ?






CAN Communication line check

Check short to battery in CAN communication line.
1. IG KEY OFF
2. Disconnect PCM, TCM and ESP(ABS/VDC) connector.
3. IG KEY ON

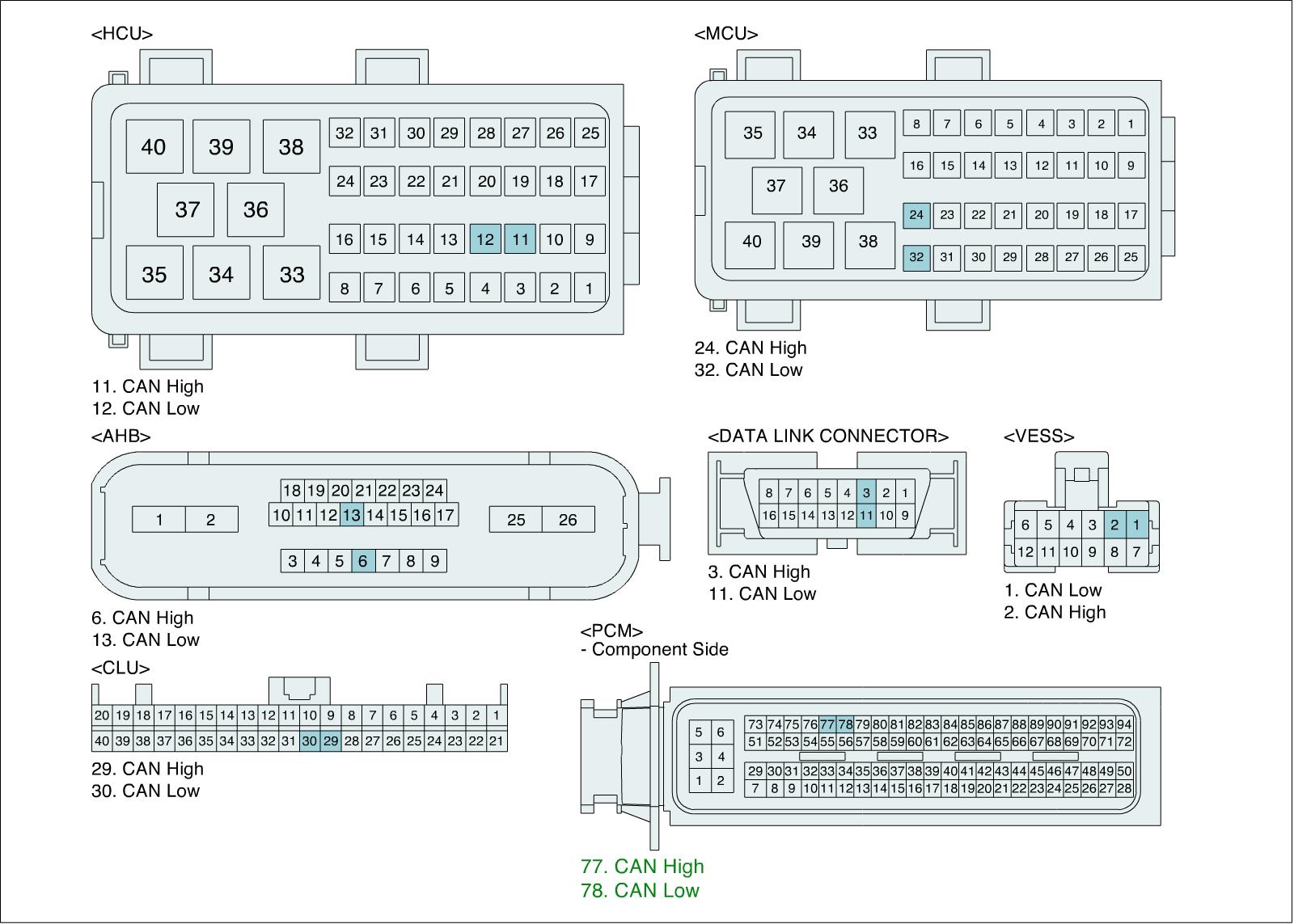

4. Measure voltage between CAN high terminal(# 3) of diagnostic connector and chassis ground.
5. Measure voltage between CAN low terminal(#11) of diagnostic connector and chassis ground.

Specification :About 0V

Check short to ground in CAN communication line
1. IG KEY OFF.
2. Disconnect PCM, TCM and ESP(ABS/VDC) connector.
3. Measure resistnace between CAN high terminal (# 3) of diagnostic connector and chassis ground.
4. Measure resistance between CAN low terminal (# 11) of diagnostic connector and chassis ground.

Specification :Infinity Ohms

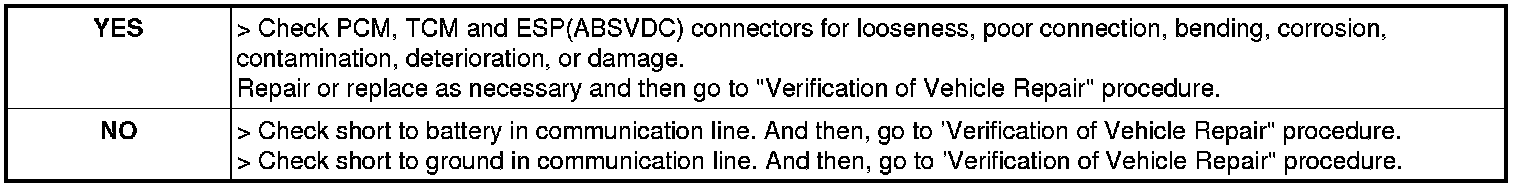

5. Is the measured resistance within specification ?
