Scantool Diagnostics

Motor Driven Power Steering
C1693 CAN Signal Error VSM - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. IG key "ON".
3. Monitor diagnostic trouble code and present of trouble code.

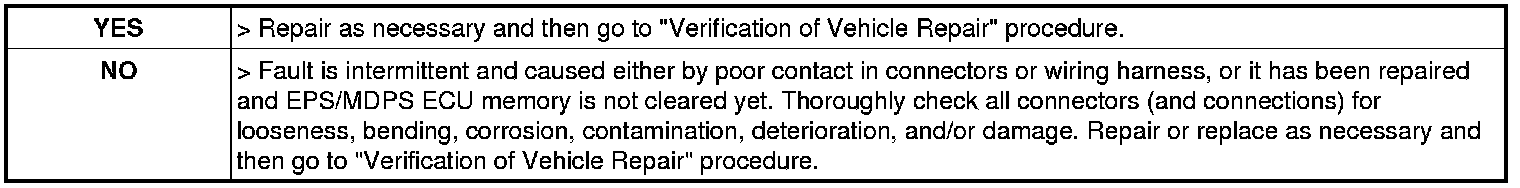

4. Are any DTCs present ?
