General Information

Motor Driven Power Steering
C1656 CAN signal error Cluster - General Information

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) provides a SPAS function according to receive the gear information of TCU (case of M/T type)

DTC Description

EPS (MDPS=Motor Driving Power Steering) CM sets this code if CLU message received abnormal data within predefined time.

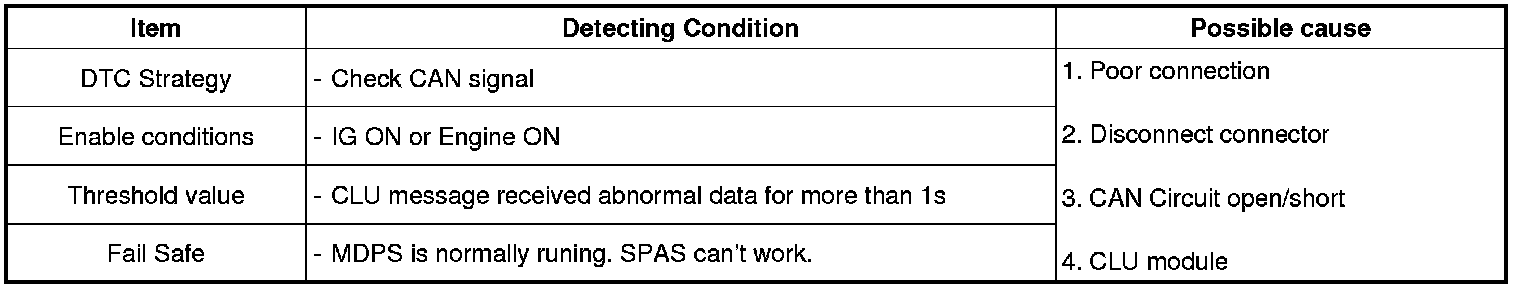

DTC Detecting Condition

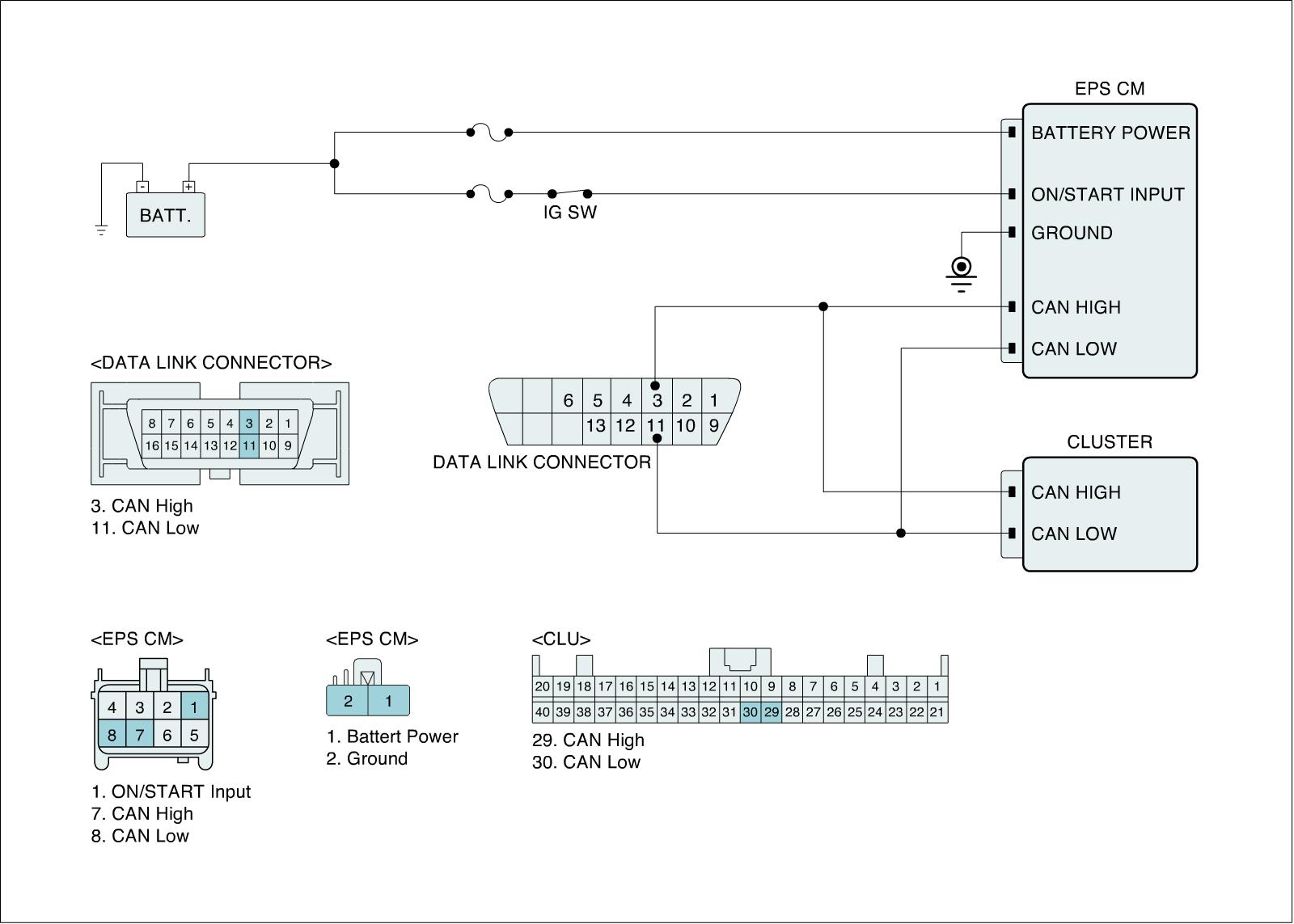

Diagnostic Circuit Diagram
