General Information

Motor Driven Power Steering
C1646 CAN Message Failure - TCU - General Information

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) provides a SPAS function according to receive the gear information of TCU (case of A/T type)

DTC Description

The EPS (MDPS) ECU sets this DTC if it has gotten abnormal data from TCU (PCM)

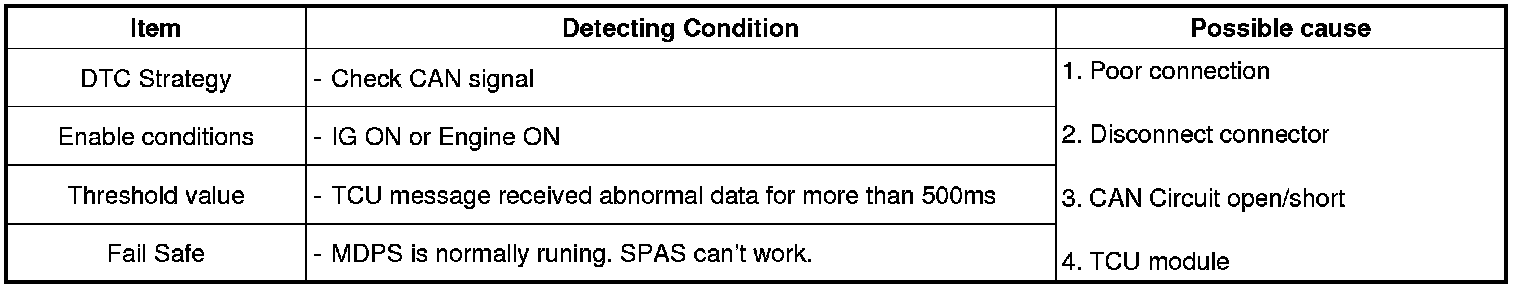

DTC Detecting Condition





Diagnostic Circuit Diagram
