Auto Headlamp Leveling System
C1620 First Setup Not Completed - Scantool Diagnostics

Scantool Diagnostics

1. Connect scantool with Diagnostic Connector.
2. Perform vehicle selection and Level Initialization with scantool as follows. And then, check "Actuator" parameter on scantool (It must be unloaded vehicle condition)

Specification :80%±2%








Fig.1) Vehicle Selection and Level Initialization

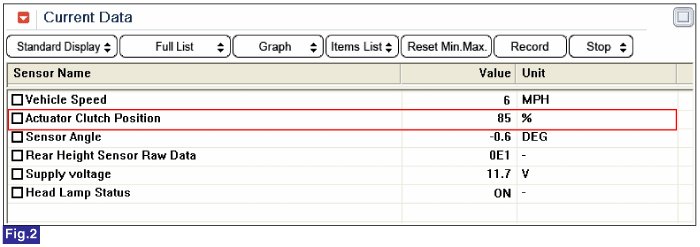

Fig.2) KEY ON-Normal Current Data

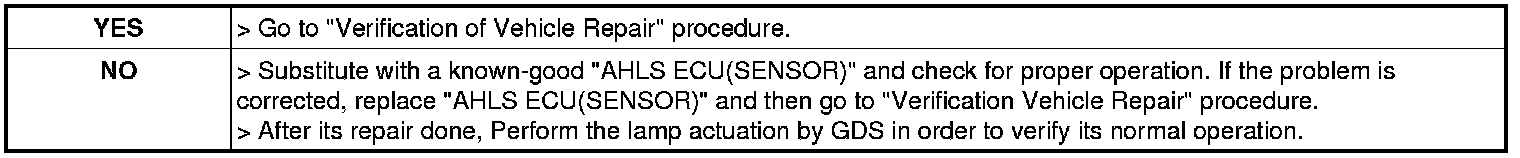

3. Are "Vehicle selection & Level Initalization" and current data normal ?






CAUTION:
Perform Vehicle Selection and Level Initialization with scantool if AHLS ECU is repalce. (Auto Levelling Sensor)
















Fig.1) Vehicle Selection and Leveling Initialization 1.
Fig.2) Vehicle Selection and Leveling Initialization 2.
Fig.3) Vehicle Selection and Level Initialization 3.
Fig.4) Vehicle Selection and Level Initialization 4.
