W/Harness Inspection

Active Hydraulic Booster
C1611 CAN Time-out EMS - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Signal circuit inspection

Open Check
1. IG "OFF".
2. Disconnect AHB and PCM(ECM) connector.

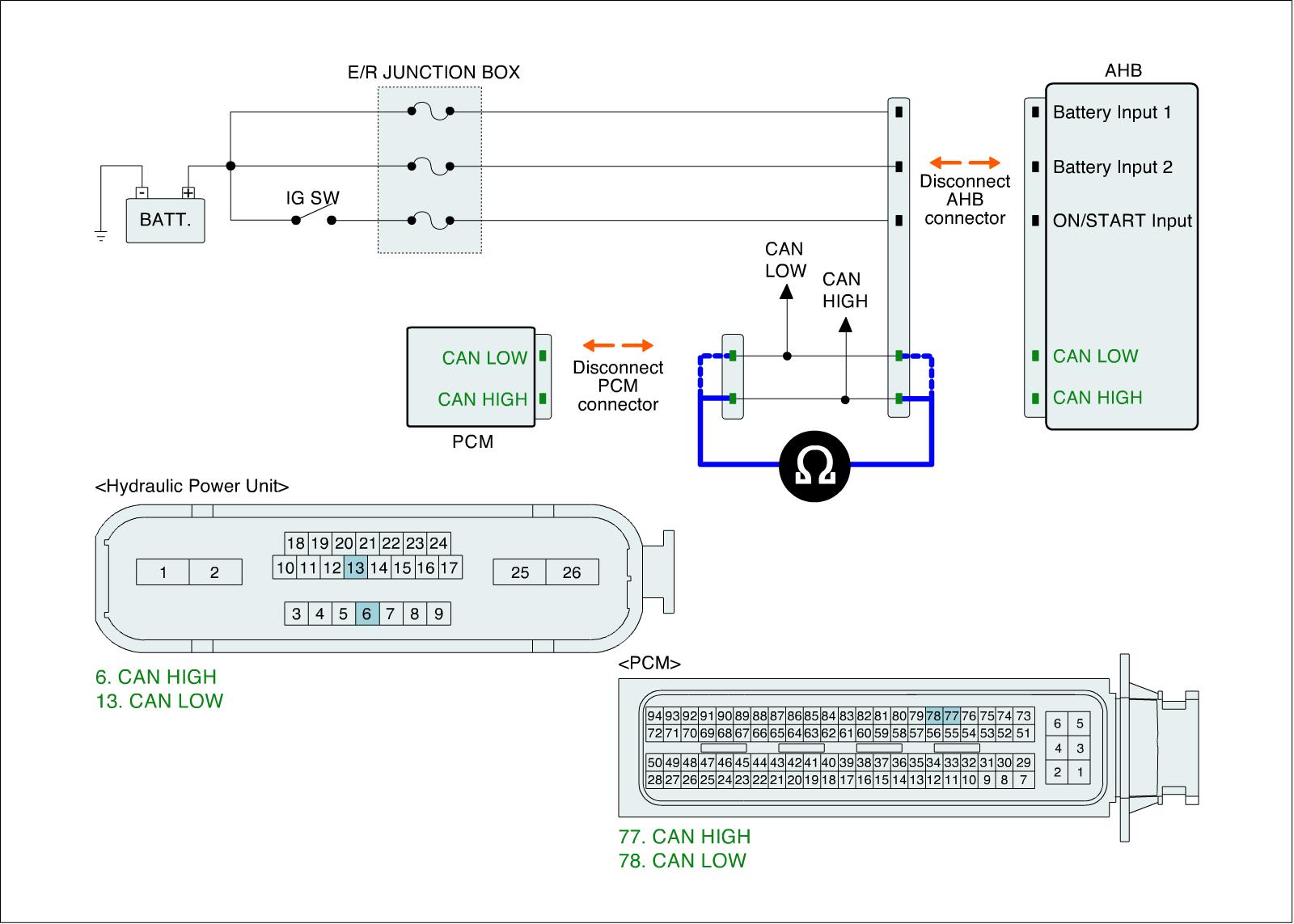

3. Measure resistance between CAN HIGH terminal (LOW terminal) of the AHB harness connector and CAN HIGH terminal (LOW terminal) of the PCM(ECM) harness connector.

Specification :Approx. below 1Ohms




4. Is the measured value within specifications?
