Component Inspection

ABS/ESC
C1503 TCS/ESC(ESP) Switch error - Inspection/Repair:_:Component Inspection

Component Inspection

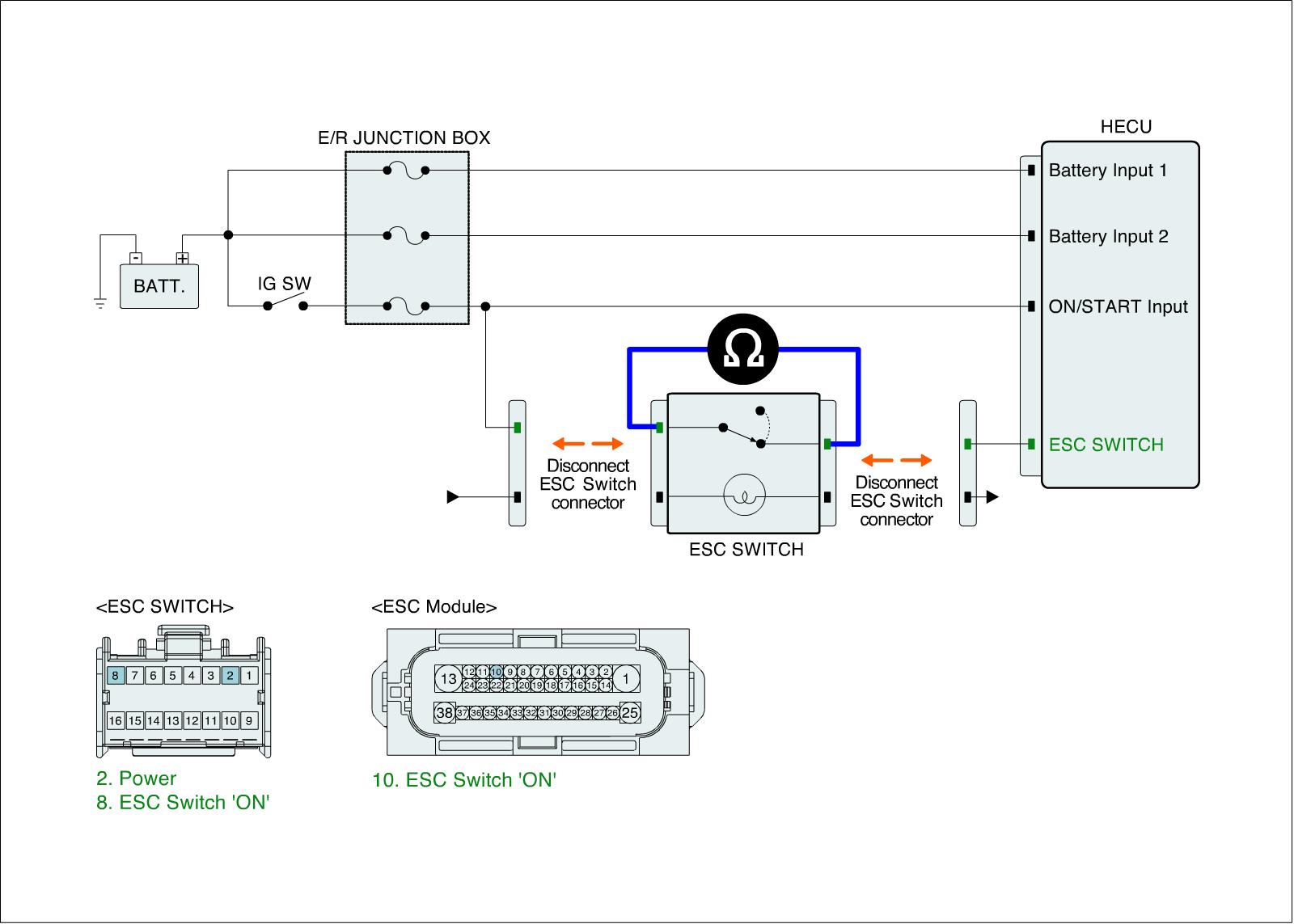

ESC(ESP) switch Check
1. IG "OFF".
2. Disconnect the ESC(ESP) switch connector.
3. Measure resistance between power terminal and siganl terminal of the ESC(ESP) switch connector.

Specification: Approx. below 1Ohms - (In case of pressing the ESC(ESP) switch)
Approx. Infinity Ohms - (In case of not pressing the ESC(ESP) switch)

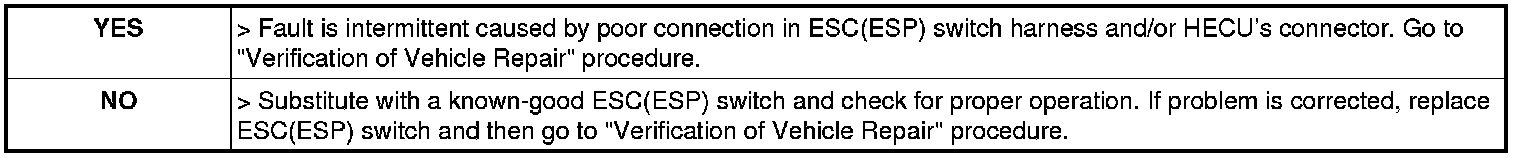

4. Is the measured resistance within specifications?
