Scantool Diagnostics

Active Hydraulic Booster
C1384 Pressure Sensor not Calibrated - Scantool Diagnostics

Monitor GDS Data

Pressure Sensor Calibration
1. IG "ON", ENG "OFF".
2. Stand the vehicle on a flat ground without any inclination.
3. Don't press brake pedal.
4. Connect GDS to Data Link Connector(DLC).

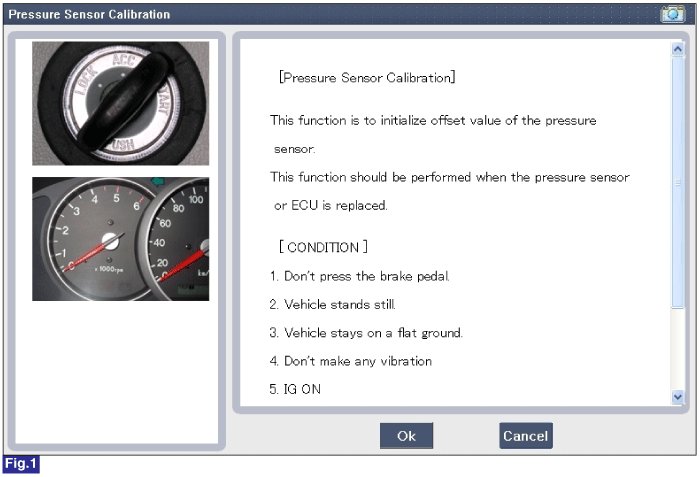

5. Perform Pressure Sensor Calibration.(figure 1).

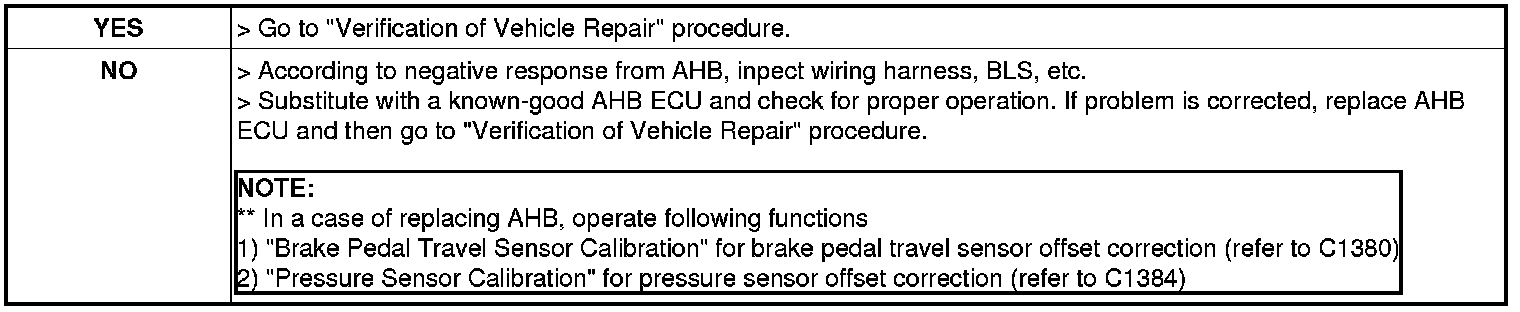

6. Is "Pressure Sensor Calibration" completed normally?
