Scantool Diagnostics

Active Hydraulic Booster
C1380 Brake Pedal Travel Sensor Not Calibrated - Scantool Diagnostics

Monitor GDS Data

Brake Pedal Travel Sensor Calibration
1. IG "ON", ENG "OFF".
2. Stand the vehicle on a flat ground without any inclination.
3. Don't press brake pedal.
4. Connect GDS to Data Link Connector(DLC).

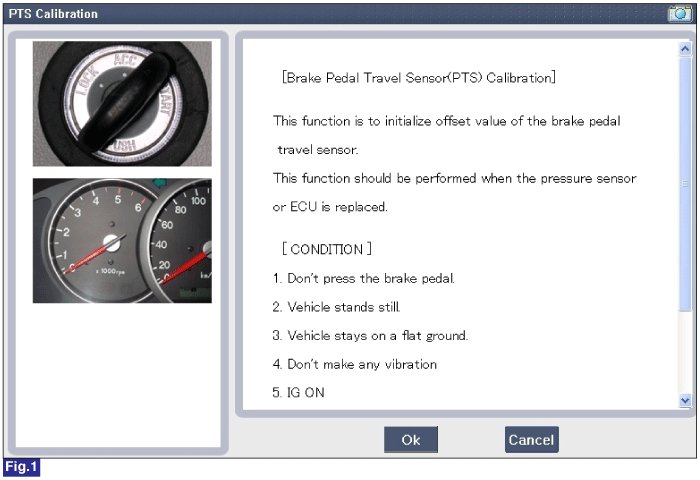

5. Perform Brake Pedal Travel Sensor Calibration.(figure 1).

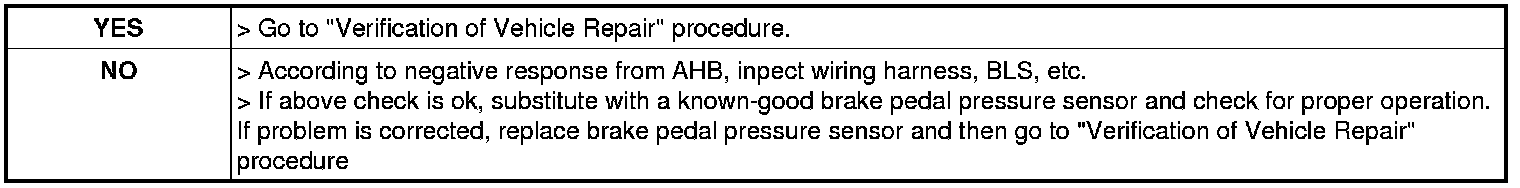

6. Is "Brake Pedal Travel Sensor Calibration" completed normally?
