General Information

Tire Pressure Monitoring
C1315 Sensor 4 Radio Frequency Channel Failure - General Information

Component Location





General Description

The TPMS (tire pressure monitoring system) monitors tire pressure. A warning lamp is illuminated when any tire drops below a certain pressure. The TPMS consists of a TPMS module and the TPMS wheel sensors. The TPMS wheel sensors are installed in the wheel at the valve stem. Wheel sensors measure the air pressure and temperature of the tire, and transmits this information to the module by RF signal.

DTC Description

The TPMS ECU monitors the RF signal of the sensor and if it is not received, this DTC is set.

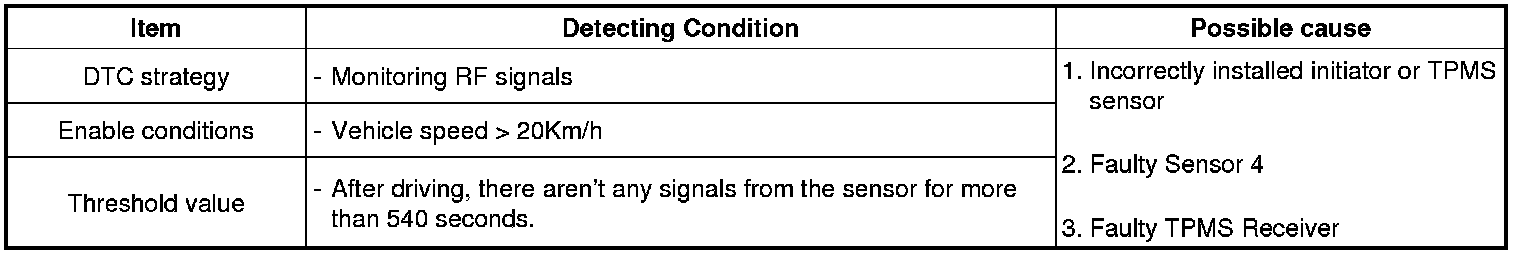

DTC Detecting Condition
