Scantool Diagnostics

Tire Pressure Monitoring
C1300 TPMS ECU IRX not responding - Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to Data Link Connector(DLC).
2. Using a scantool, clear DTCs.
3. IG OFF and then, IG ON,again.
4. Again using scantool, Check DTC present.

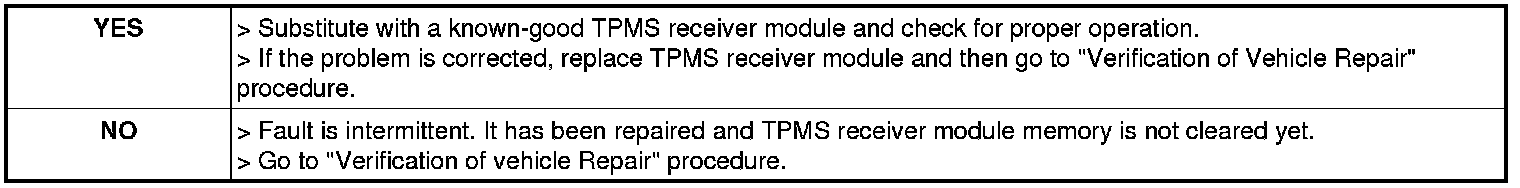

5. Is the same DTC shown, agian?
