Scantool Diagnostics

Motor Driven Power Steering
C1290 Torque Sensor Signal Error - Scantool Diagnosis:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC)
2. Ignition "ON" & Engine "ON".
3. Turn the steering wheel to the left or right.

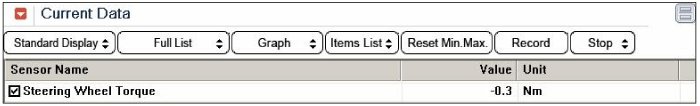

4. Monitor the "Stering Whel Torque" parameters on the Scantool.

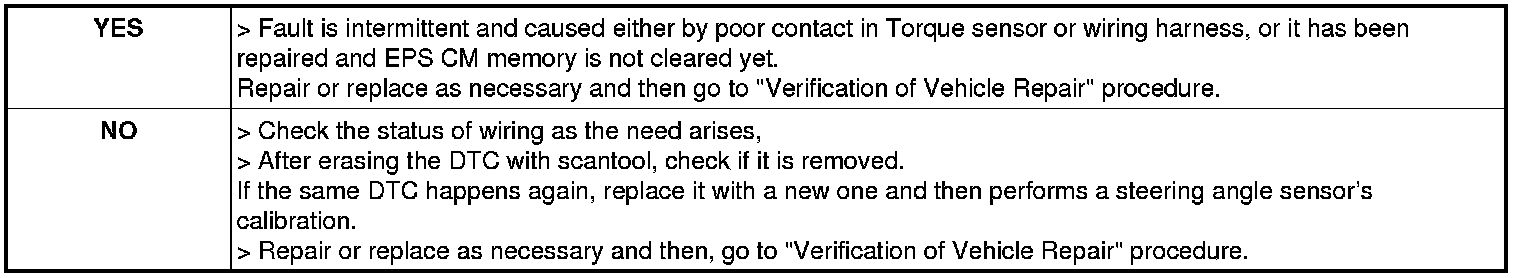

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed?
