Scantool Diagnostics

Active Hydraulic Booster
C1112 Sensor Source Voltage - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification :Approx. 4.75 - 5.25V




Fig 1) Normal Data at ENG "ON"

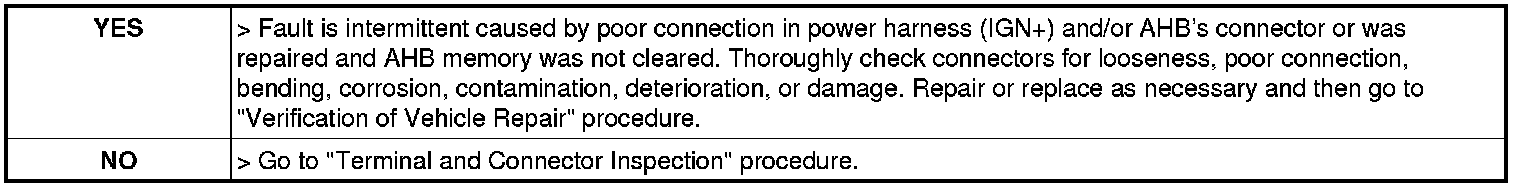

4. Is parameter displayed within specifications?
