W/Harness Inspection

Active Hydraulic Booster
C1103 Ignition voltage - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Ignition Circuit Inspection

Open or Short Check
1. IG "ON".

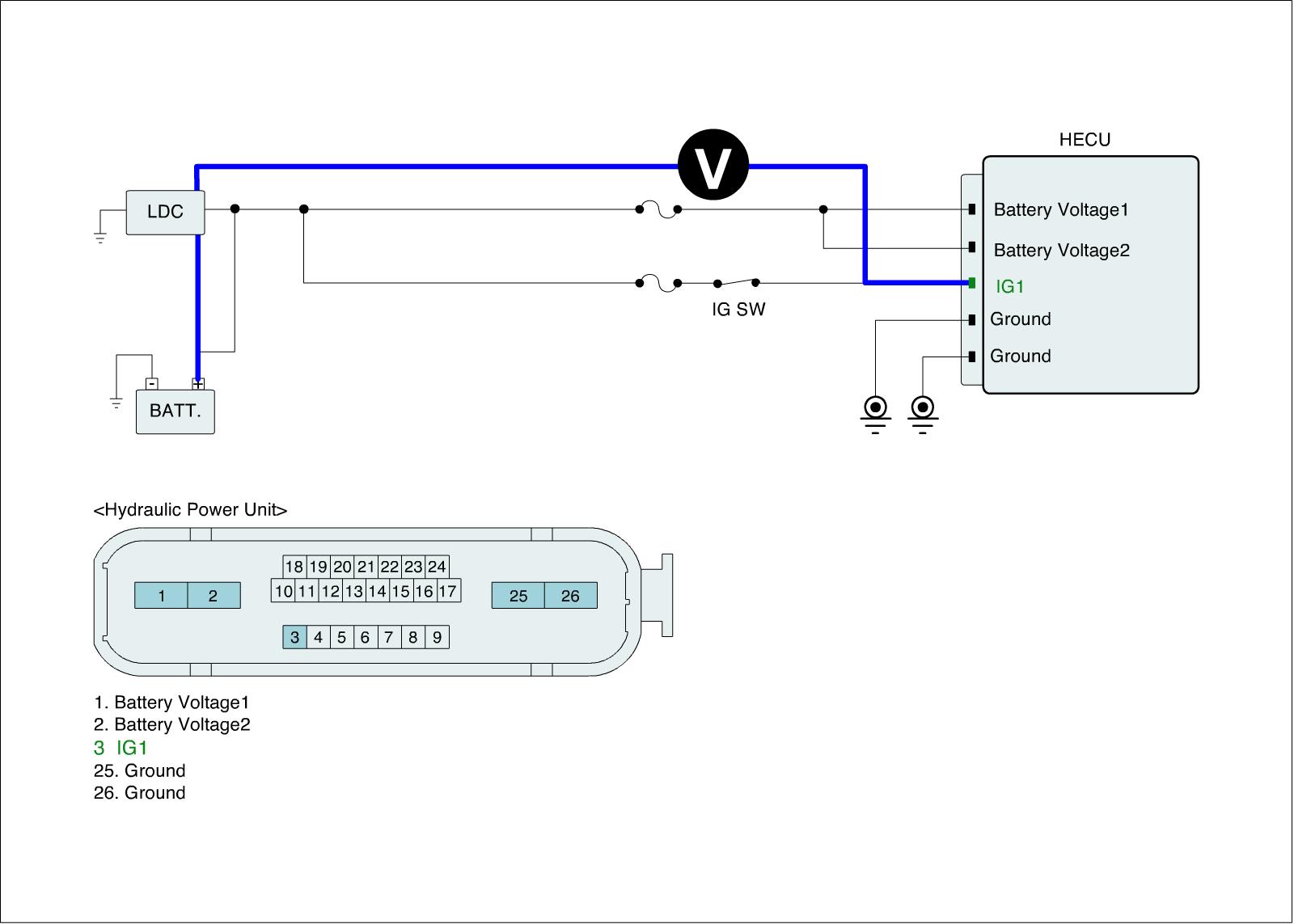

2. Measure voltage between the battery terminal(+) and ignition terminal of the AHB harness connector.

Specification :Approx. below 0.2V

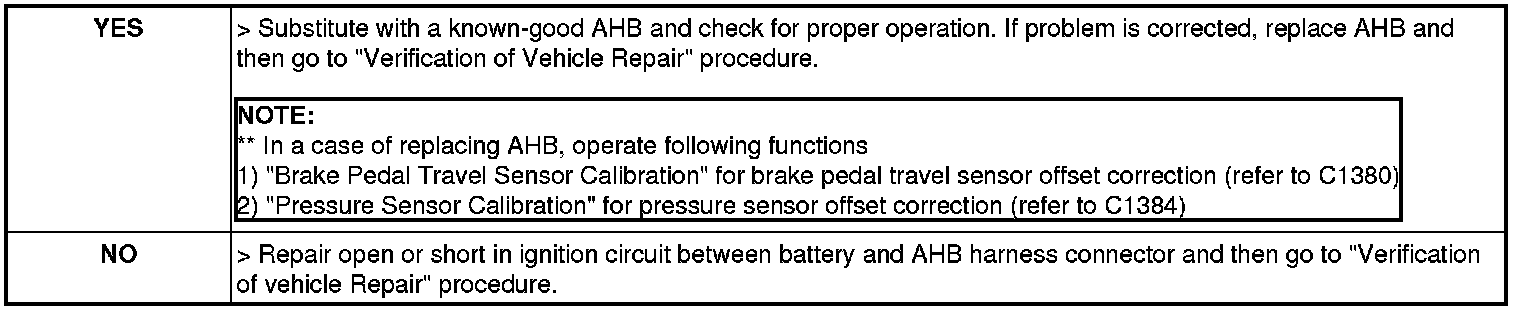

3. Is the measured value within specifications?
