General Information

Motor Driven Power Steering
C1101 Battery Voltage High - General Information

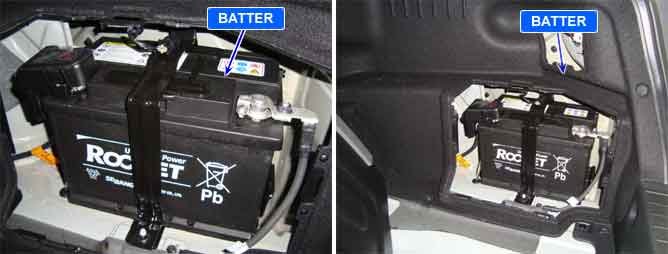

Component Location





General Description

EPS CM (MDPS=Motor Driving Power Steering) monitors that operating voltage supplied as IG S/W is too high or too low on "power supply terminal". If excessive high voltage or low voltage is detected, EPS CM stops current supply to solenoid to prevent unexpected operation or damage.

DTC Description

EPS CM (MDPS=Motor Driving Power Steering) sets this code if high voltage caused by faulty alternator or poor connention in power supply circuit is detected.

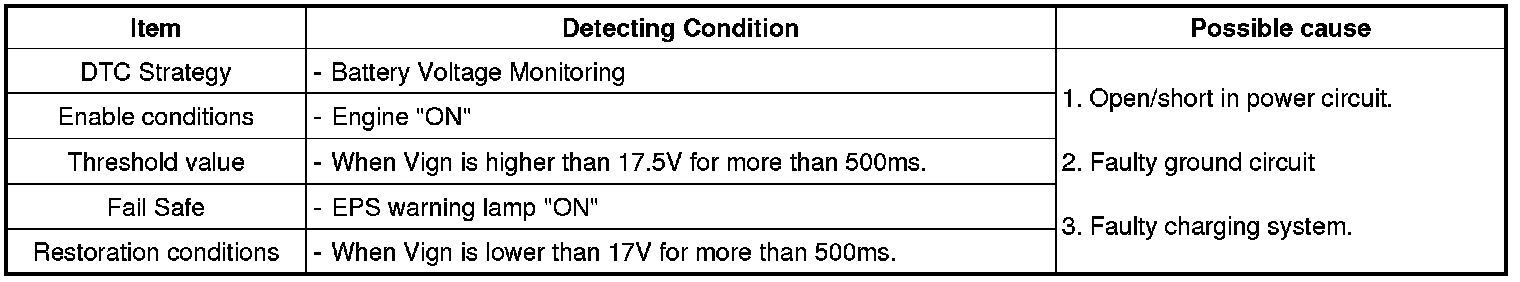

DTC Detecting Condition





Specification

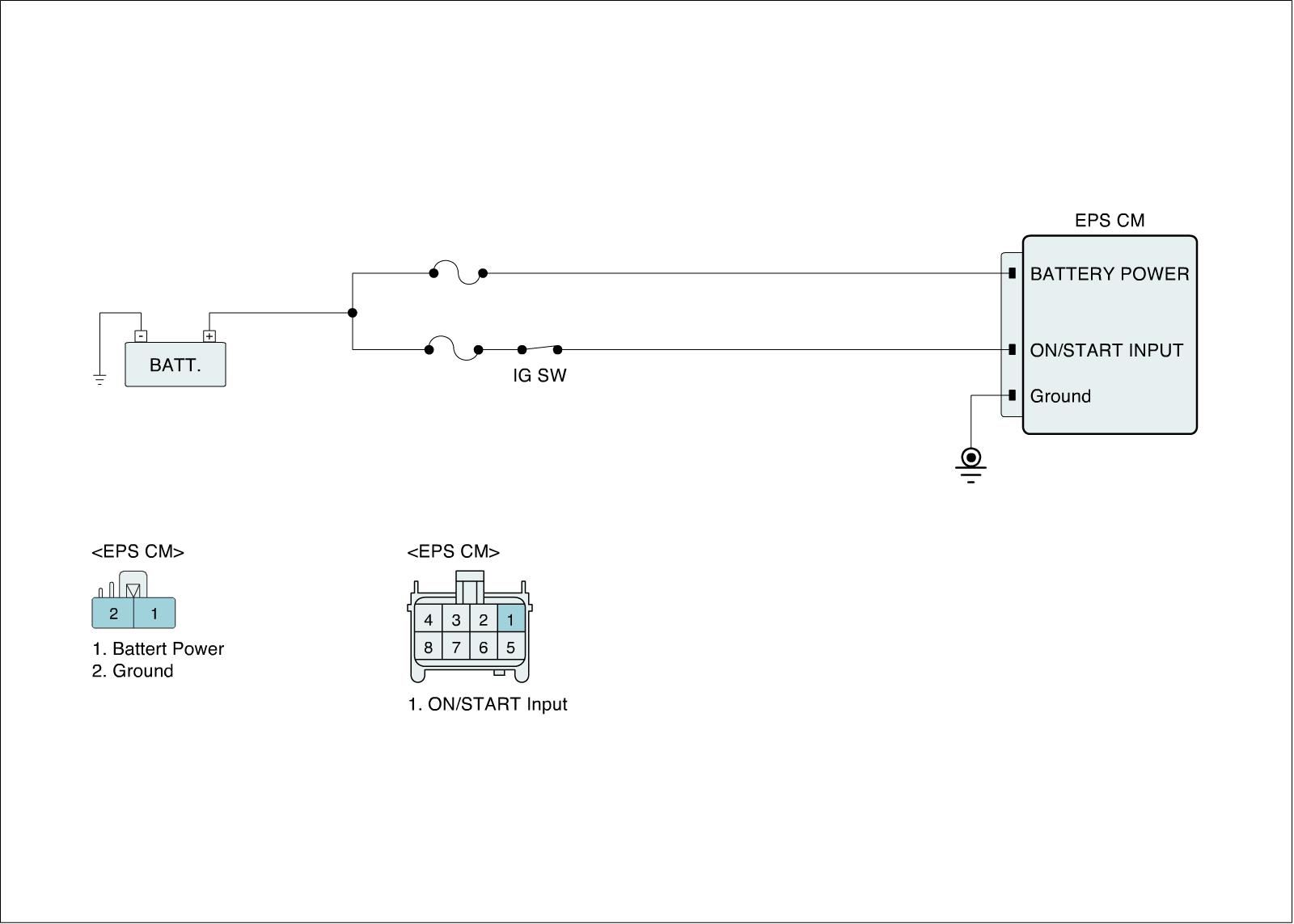

Diagnostic Circuit Diagram
