Scantool Diagnostics

Active Hydraulic Booster
C1101 Battery Voltage High - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON" & ENG "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification :Below. 17.0±0.5V




Fig 1) Normal Data at ENG "ON"

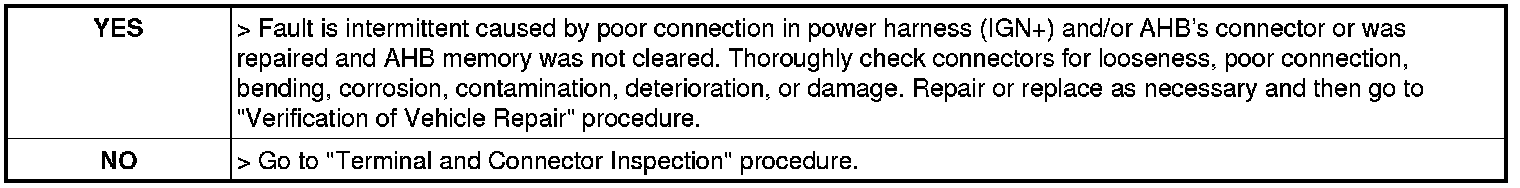

4. Is parameter displayed within specifications?
