General Information

Air Conditioner
B2468 E-Comp Sleep Mode - General Information

Component Location





General Description

The A/C Control Unit may control the E-compressor through the local CAN communication (Comp CAN, not a Chassis CAN). The A/C Control Unit may give the E-Compressor a target RPM to be functioned, and then the E-compressor gives the A/C Control Unit its RPM, voltage, current, consumption power and so on.

DTC Description

DTC B2468 will set if the E-Comp enters to the sleep mode. (inverter no operatrion by irrecoverable comp errors)

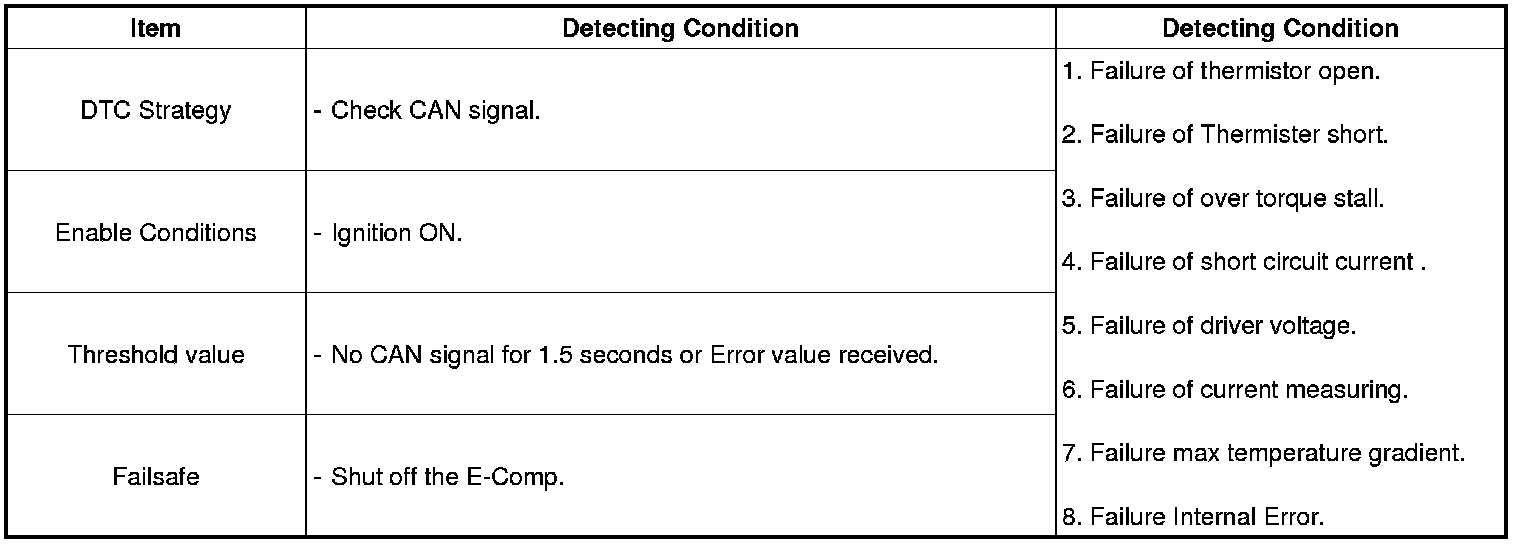

DTC Detecting Condition





Diagnostic Circuit Diagram
