General Information





Air Conditioner
B1804 HVAC Blower Motor - General Information

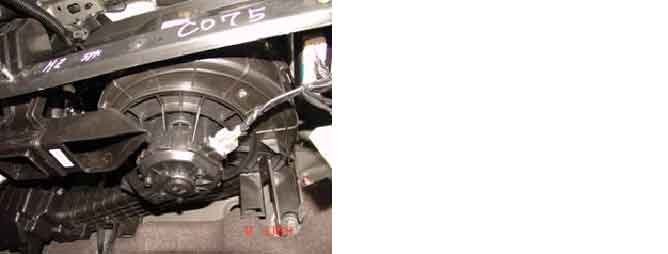

Componet Location





General Description

The Blower Motor sends air into the indoor through the Evaporator Unit or Heater Unit.

DTC Description

DTC B1696 will set if the Blower Motor is sutck.

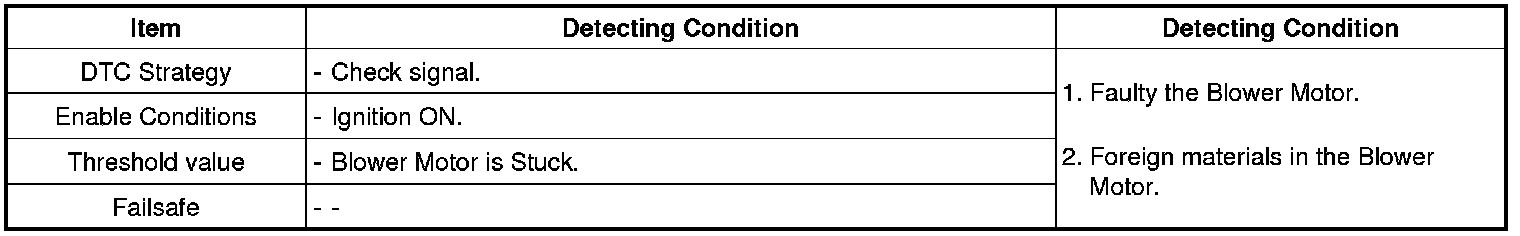

DTC Detecting Condition

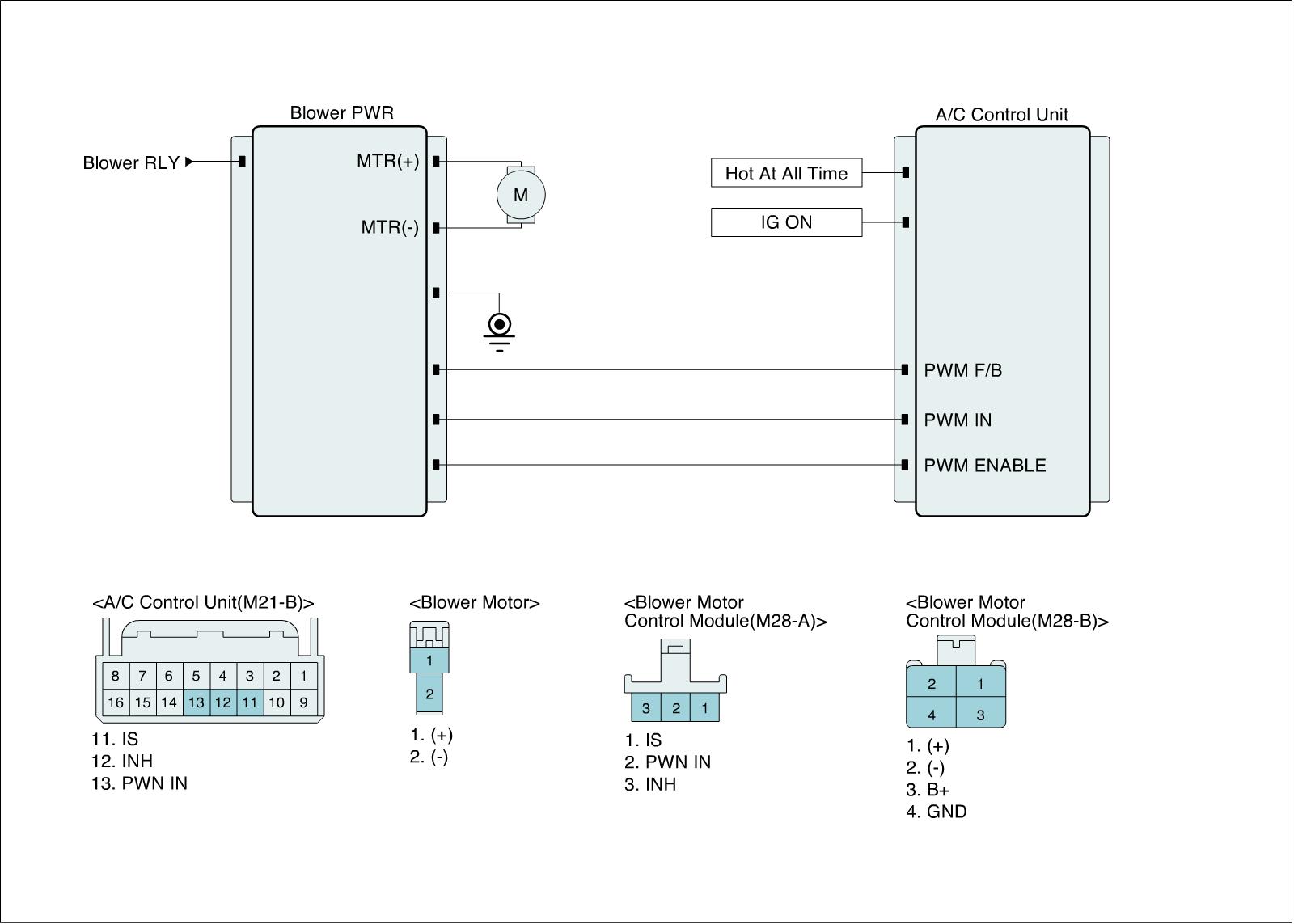

Diagnostic Circuit Diagram
