B1802 E-Comp Fault (High_Voltage) - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

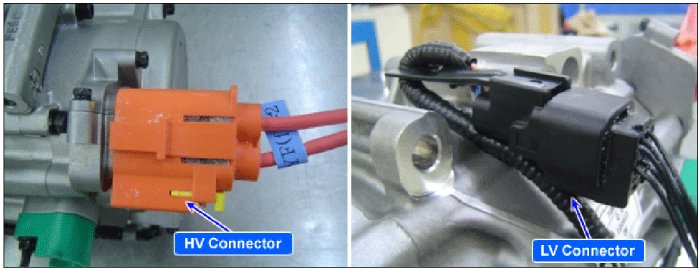

2. Thoroughly check connectors for pushing back, looseness, poor connection, bending, corrosion, contamination, deterioration,or damage for High/Low Voltage Connector.
3. Has a problem been found?










E-Comp model name Inspection

Check for the E-Comp model name on it
1. Is the E-Comp model name HYF?






Vehicle Battery level Inspection

Check the vehicle battery level
1. Is the vehicle battery level between 200 - 310?
