Tires: Service and Repair

Tire wear

1. Measure the tread depth of the tires.

Tread depth [limit] : 1.6 mm (0.063 in.)

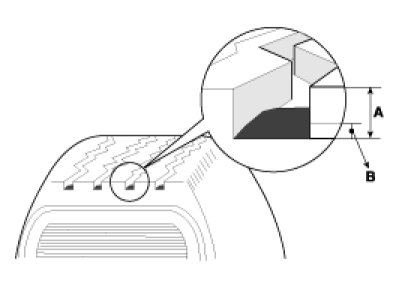

2. If the remaining tread depth (A) is less than the limit, replace the tire.

NOTE:
When the tread depth of the tires is less than 1.6 mm(0.063 in.), the wear indicators (B) will appear.
