System Specifications





Specifications

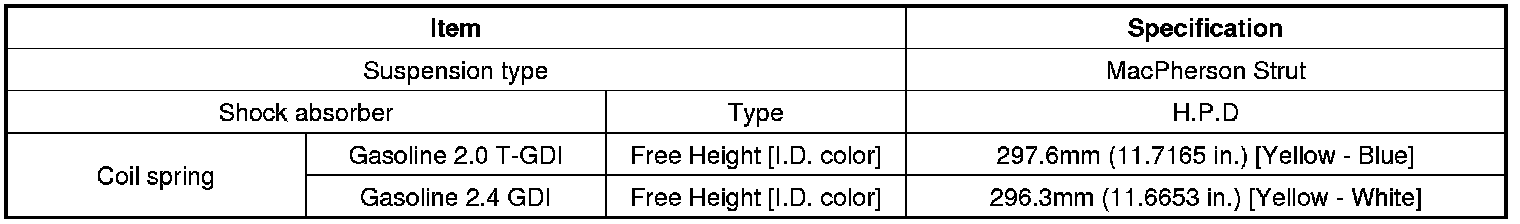

Front Suspension

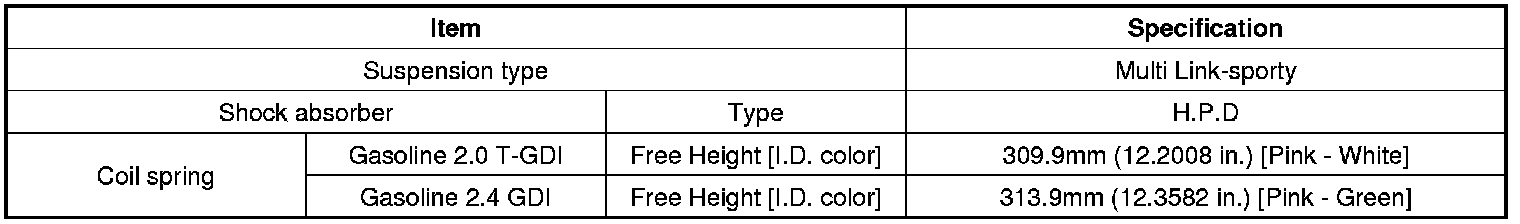

Rear Suspension

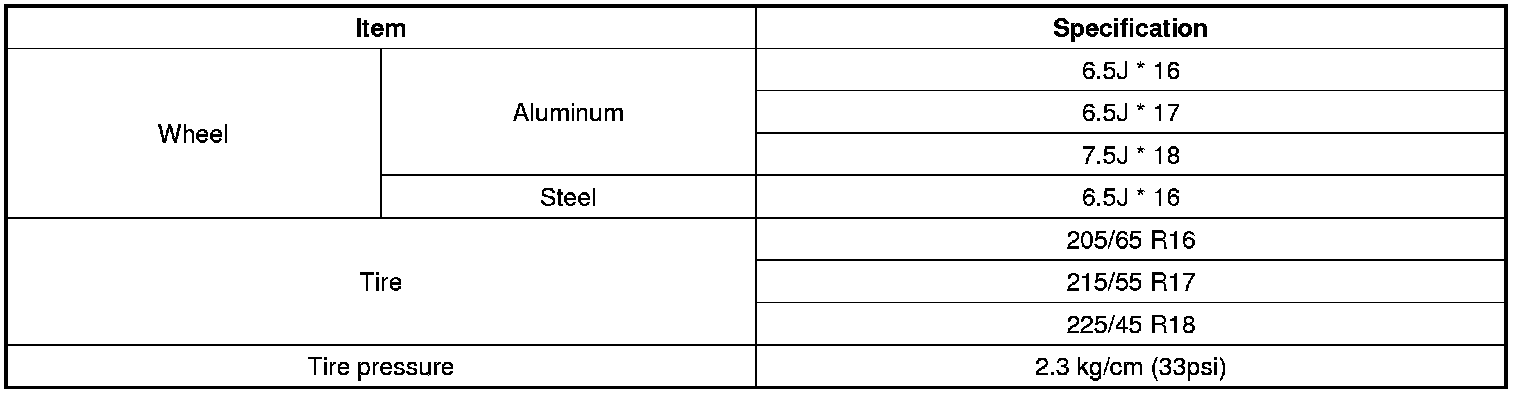

Wheel & Tire

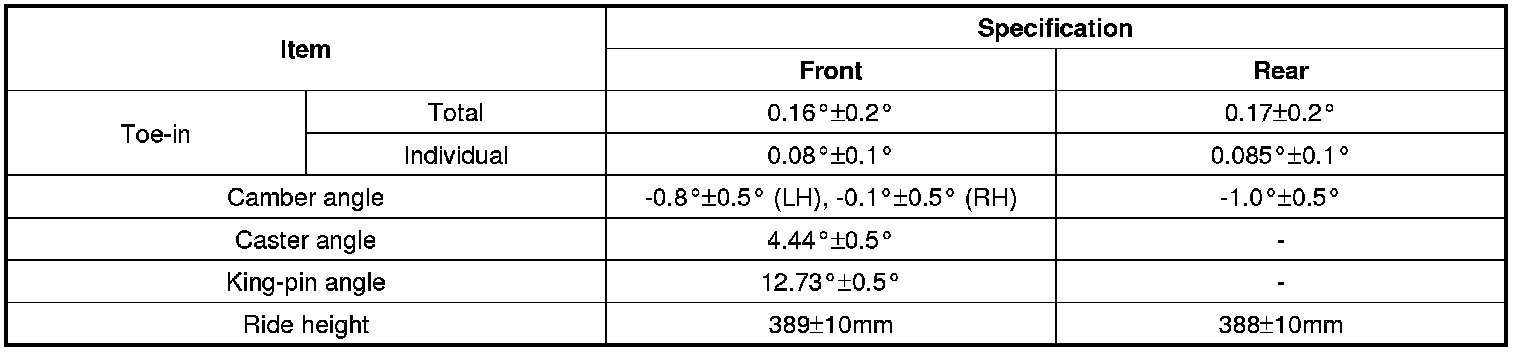

Wheel Alignment






Tightening Torque

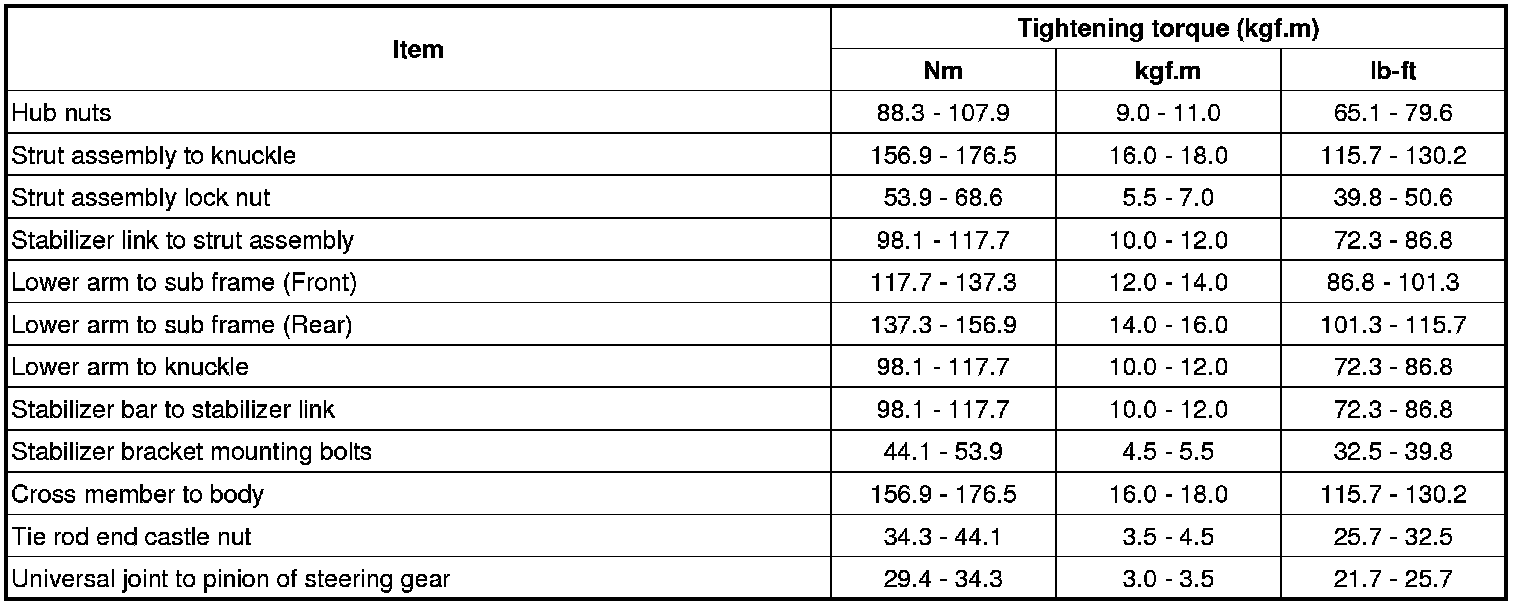

Front Suspension

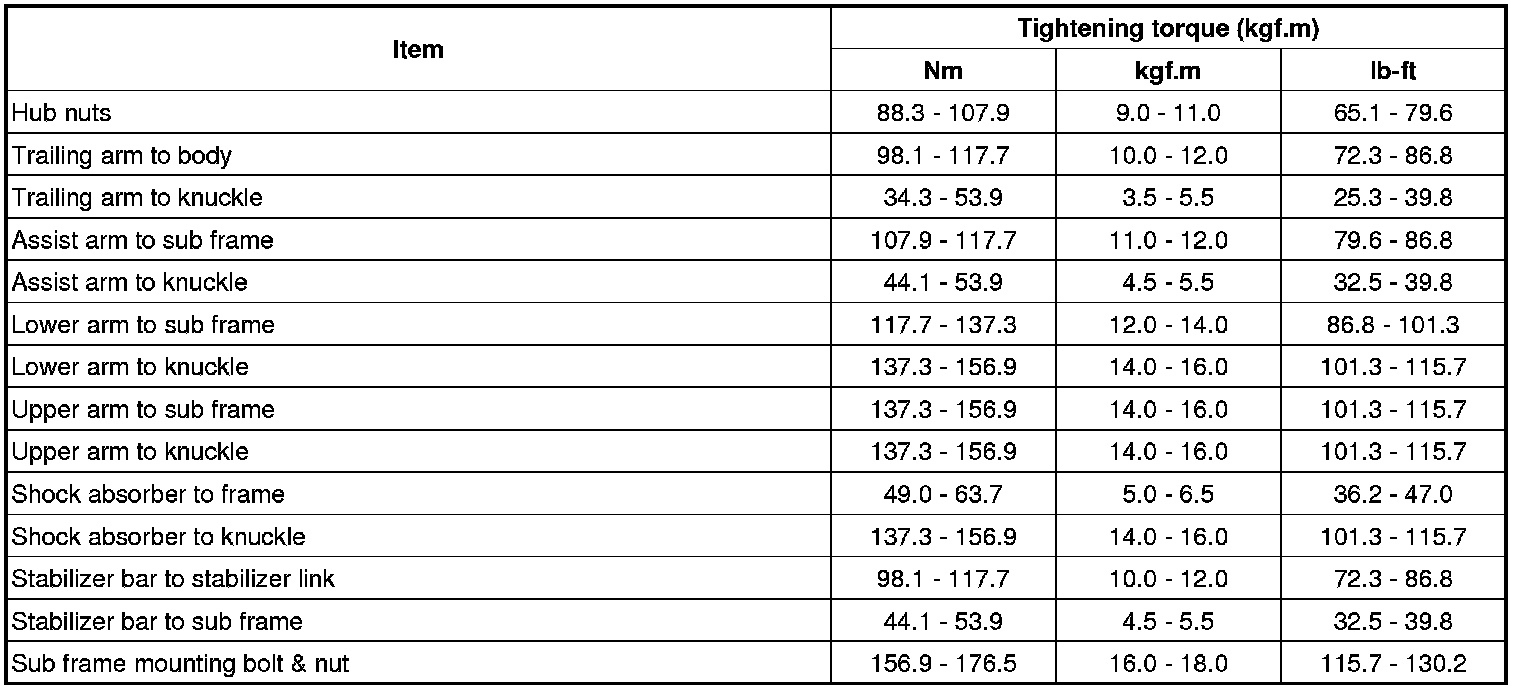

Rear Suspension
