Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Seat Temperature Switch >> Diagrams >> Connector Views >> Front Seat Warmer & CCS Switch (A/T)

Front Seat Warmer & CCS Switch (A/T)

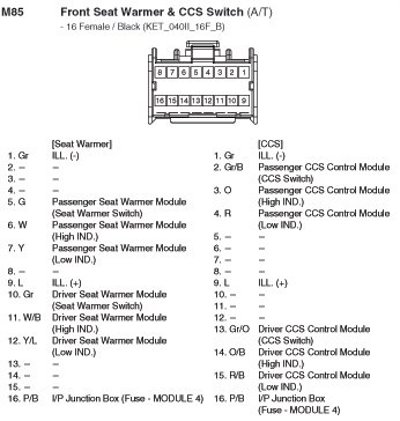

M85 Front Seat Warmer & CCS Switch (A/T):
