Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Blower Motor Relay >> Diagrams >> C/Fan (HI) Relay

C/Fan (HI) Relay

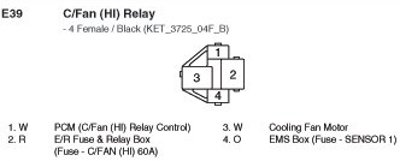

E39 C/Fan (HI) Relay:

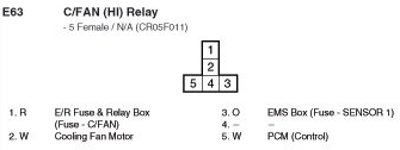

E63 C/Fan (HI) Relay:
