Temperature Control Actuator

Inspection

1. Ignition "OFF"
2. Disconnect the connector of temperature control actuator.

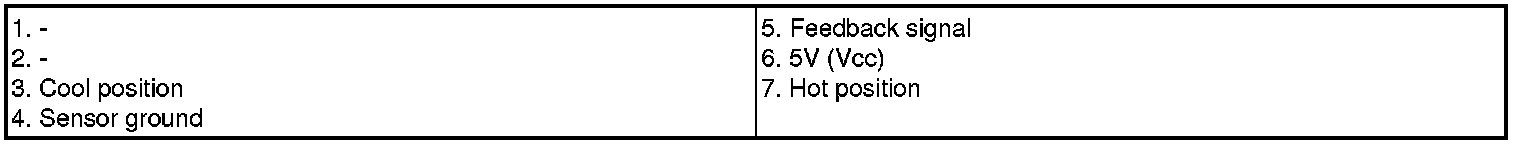

3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 3 and grounding terminal 7.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.

[Drive]









4. Check the voltage between terminals 4 and 5 (Drive).

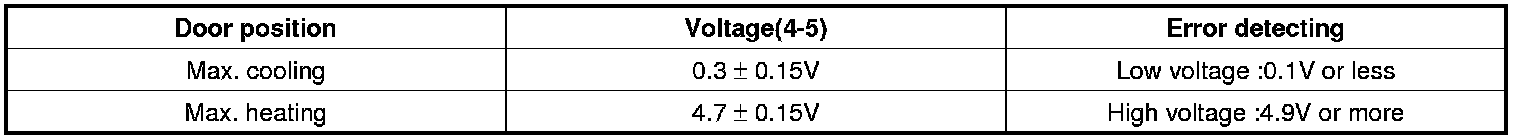

Specification






[Passenger]









5. Check the voltage between terminals 4 and 5 (Passenger).
Specification





It will feedback current position of actuator to controls.
6. If the measured voltage is not specification, substitute with a known-good temperature control actuator and check for proper operation.
7. If the problem is corrected, replace the temperature control actuator.
