Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Harness >> Battery & Front End Module, Rear Bumper

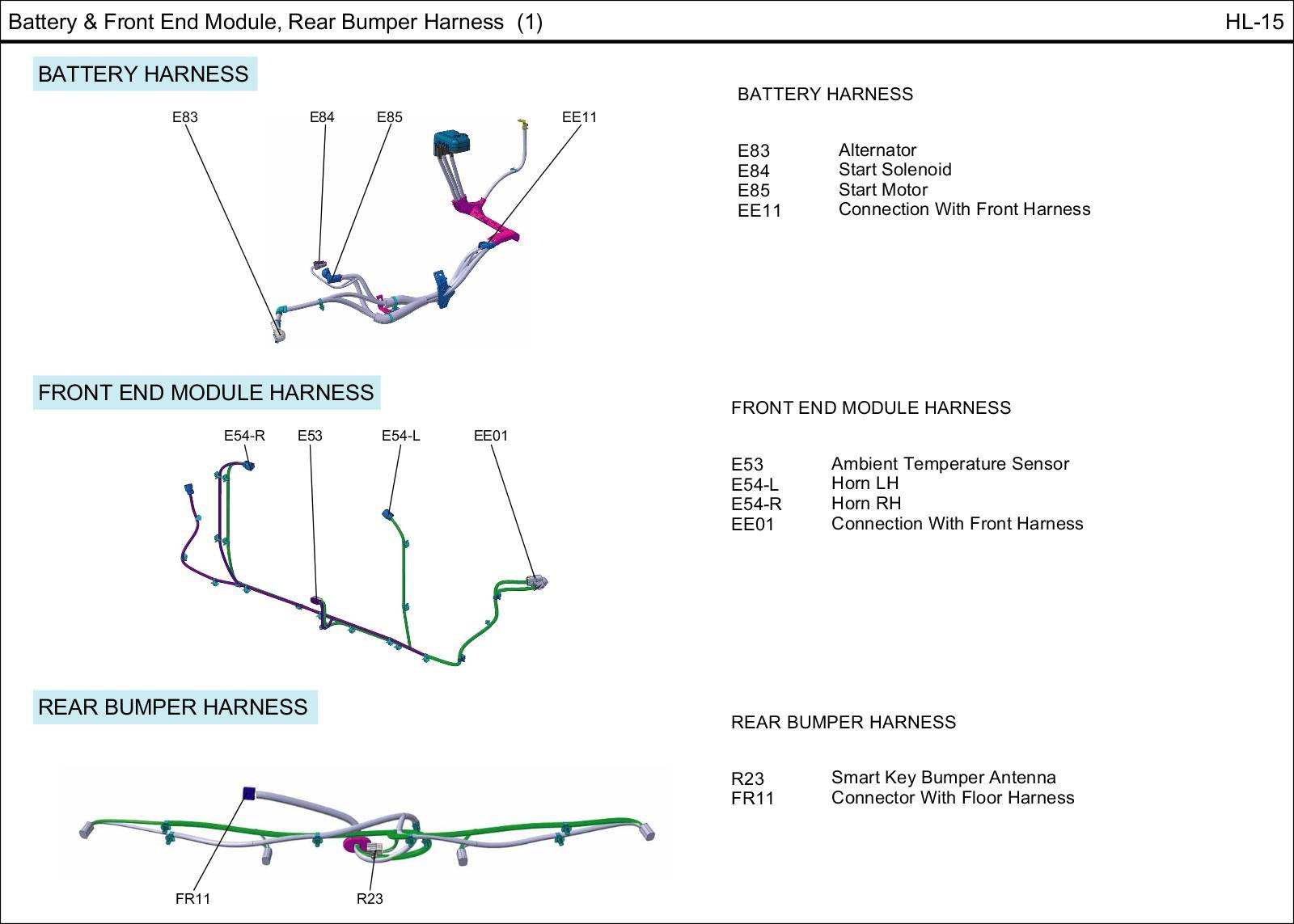

Battery & Front End Module, Rear Bumper

Battery & Front End Module, Rear Bumper Harness:
