System Diagram

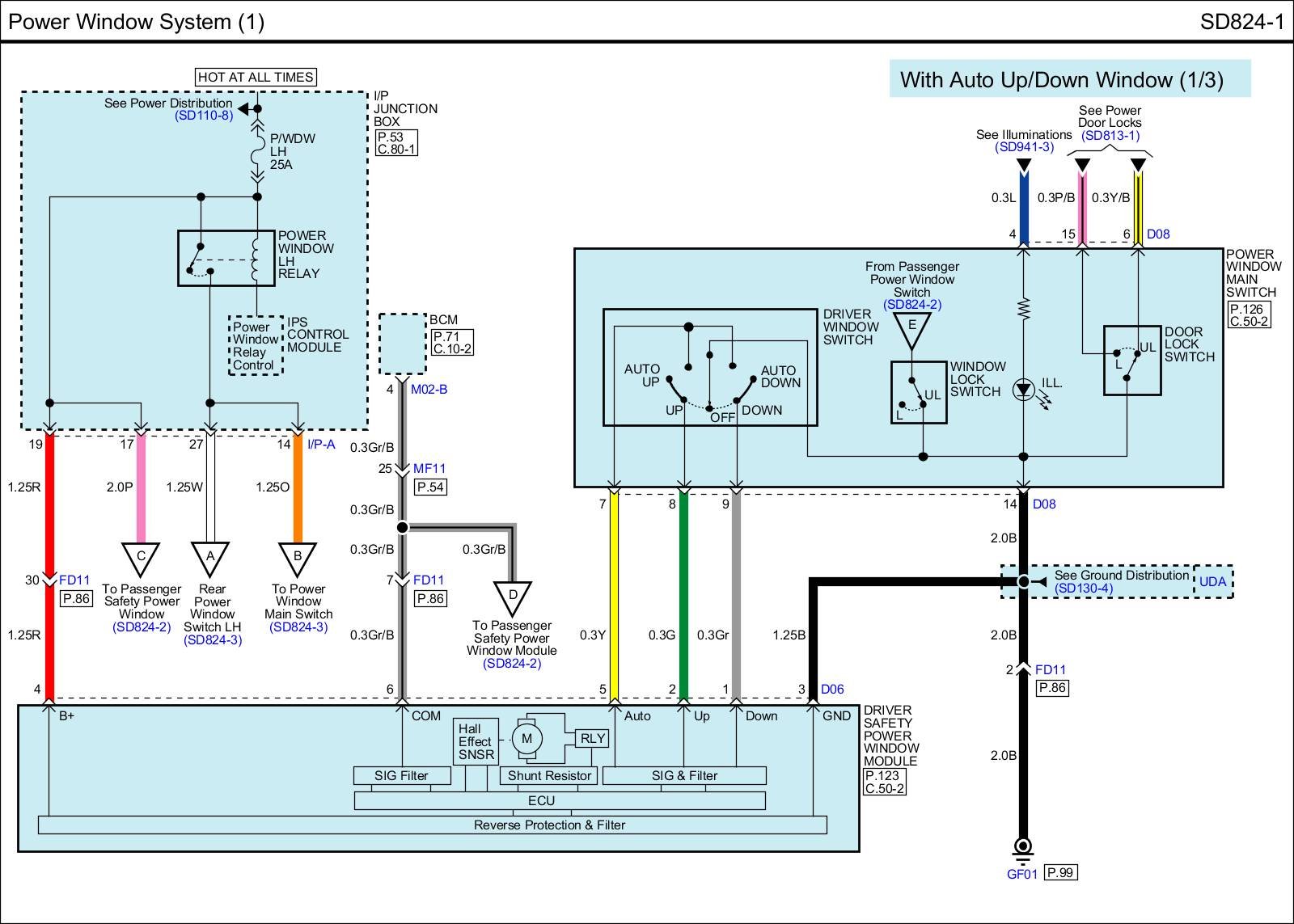

SD824-1 Power Window System (1):

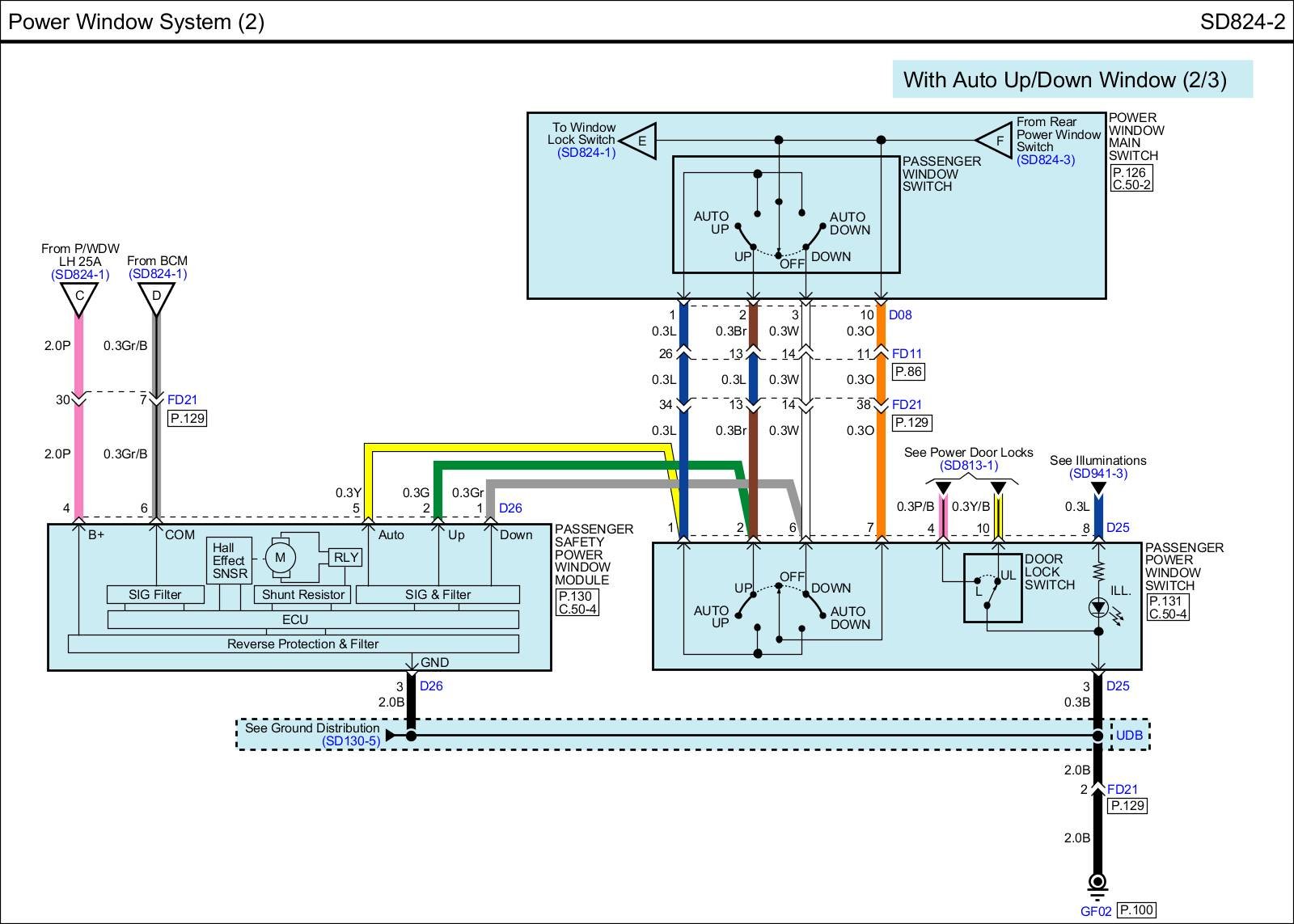

SD824-2 Power Window System (2):

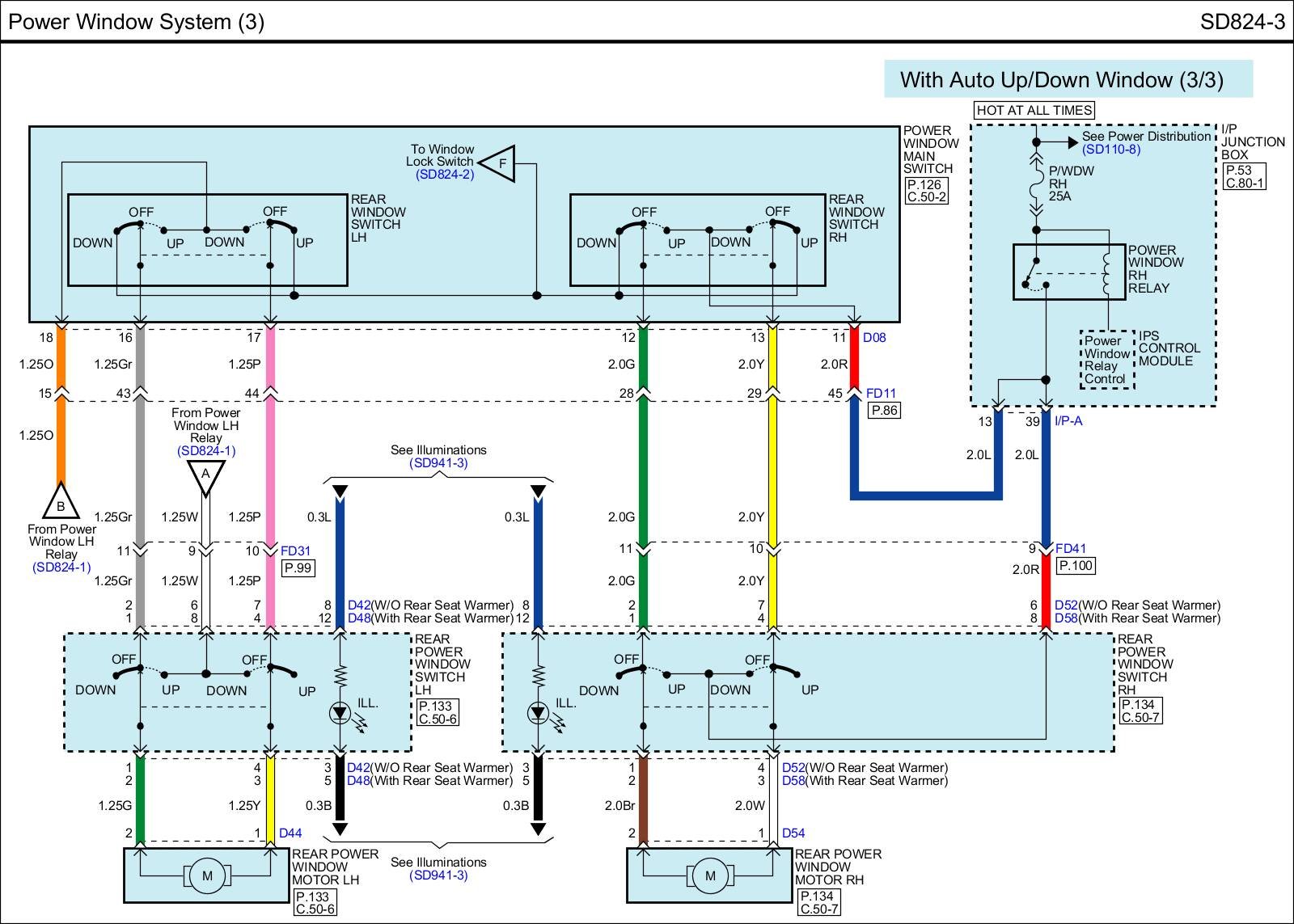

SD824-3 Power Window System (3):

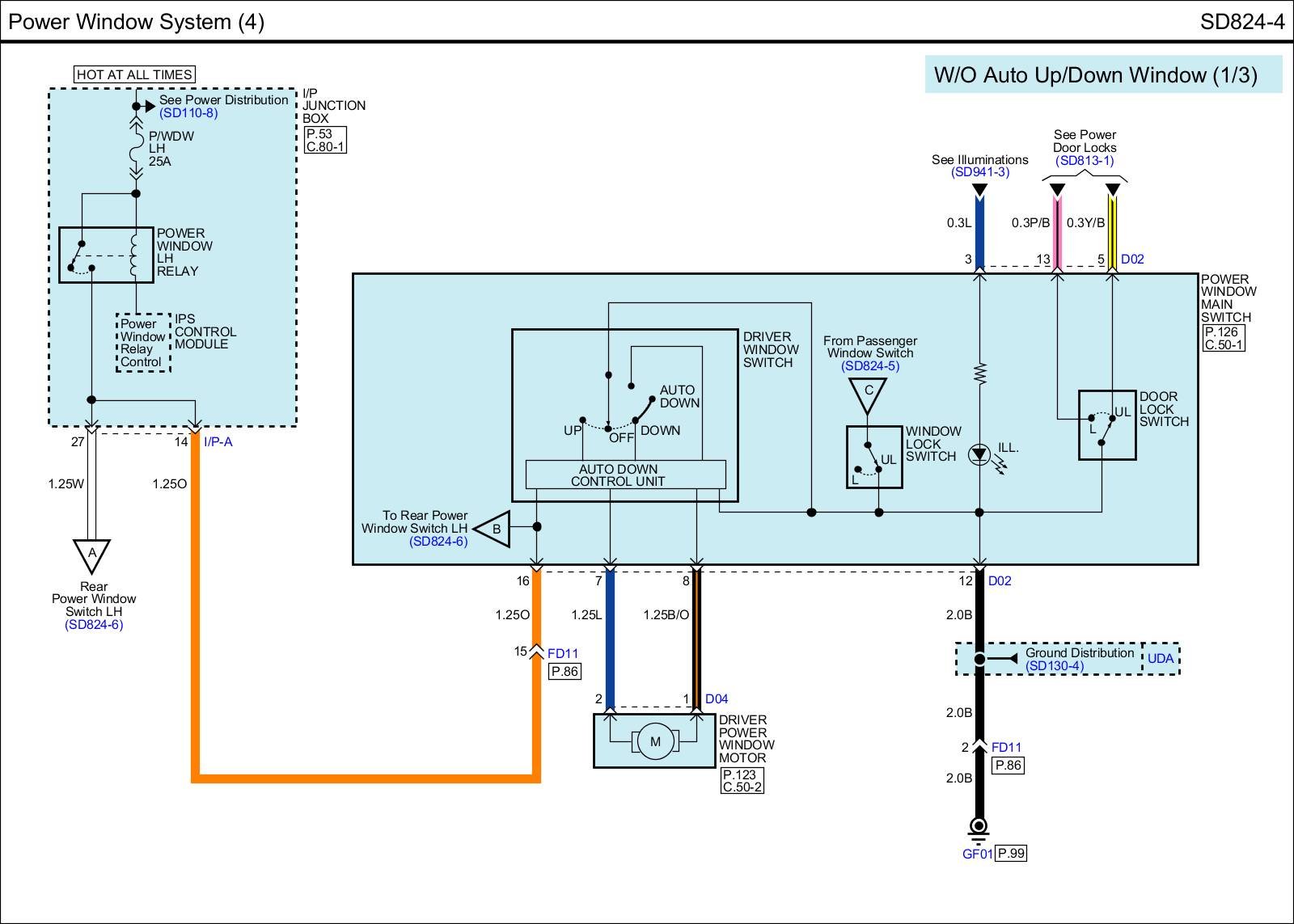

SD824-4 Power Window System (4):

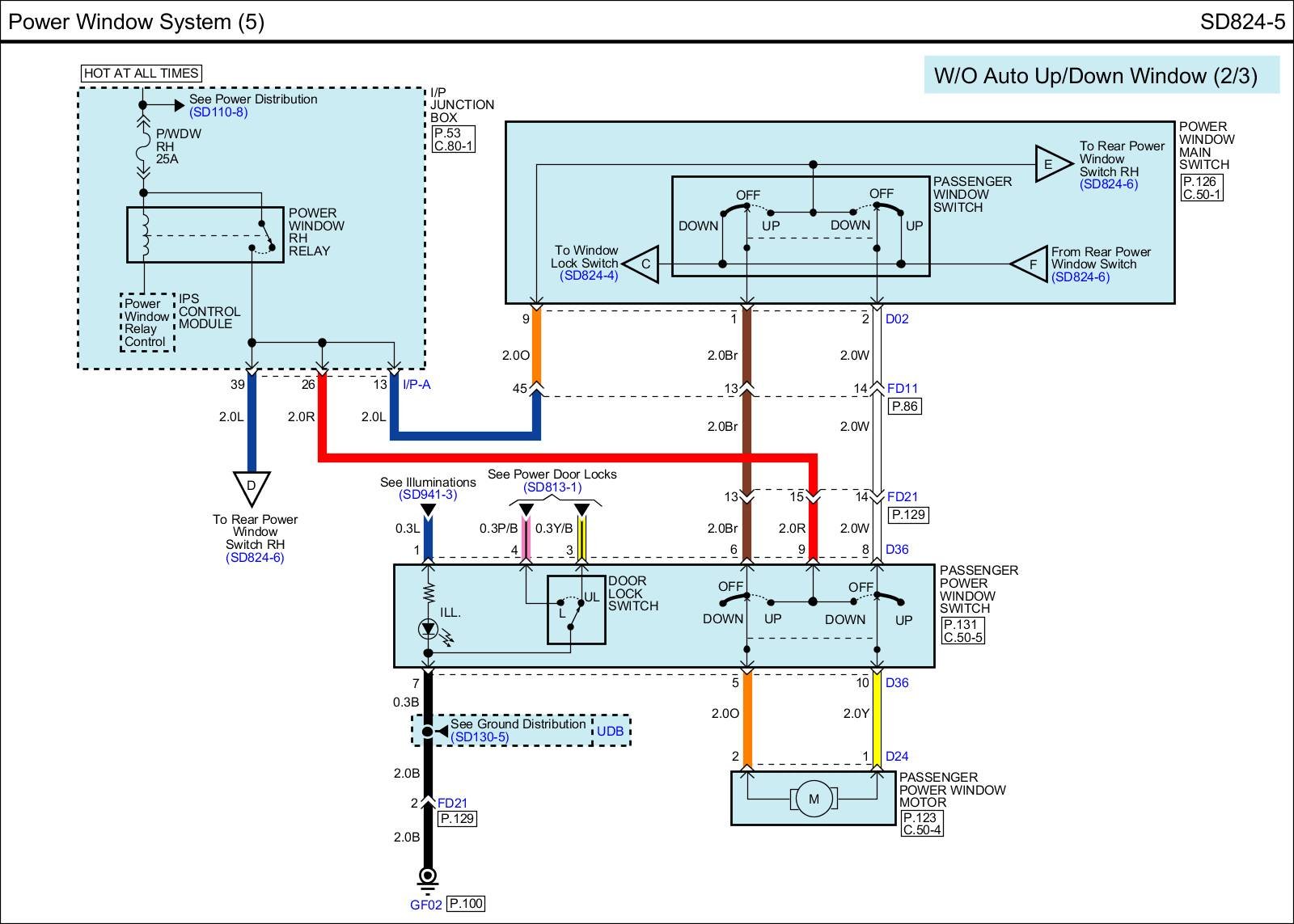

SD824-5 Power Window System (5):

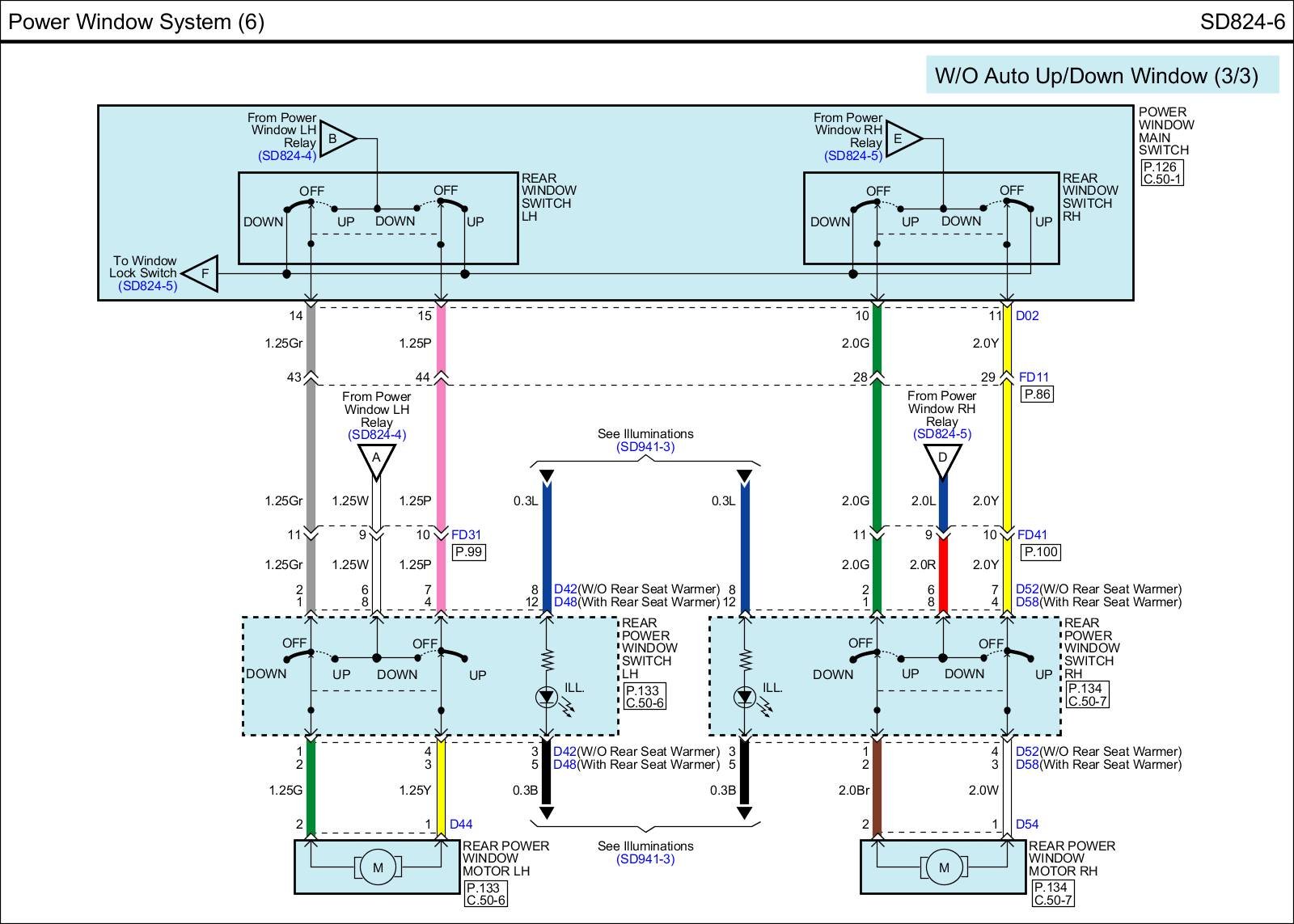

SD824-6 Power Window System (6):

Diagrams: Other diagrams referred to by SD number (i.e SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations By Photo Number
