Diagram Set SD879 (Defogger System)

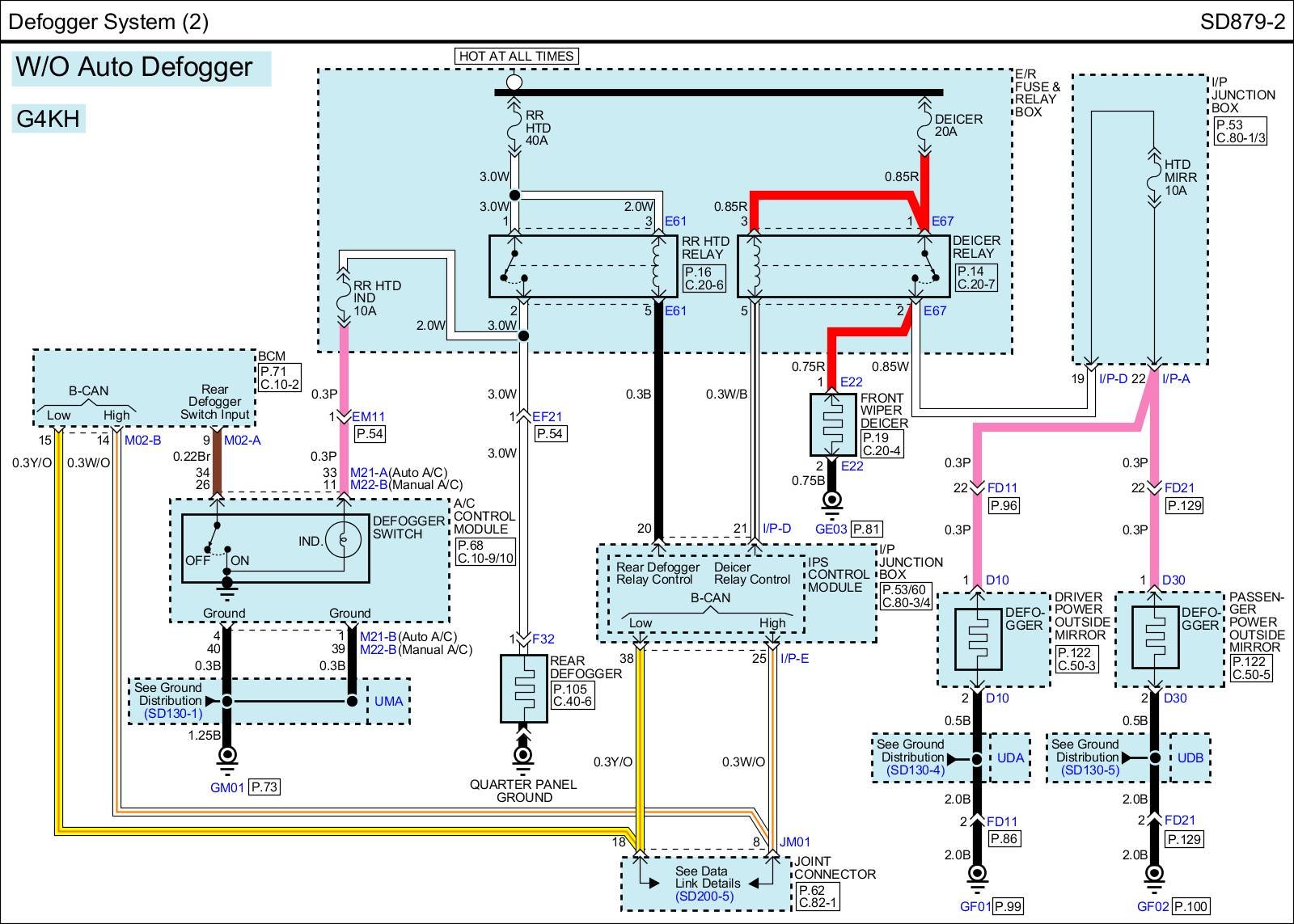

SD879-2 Defogger System (2):

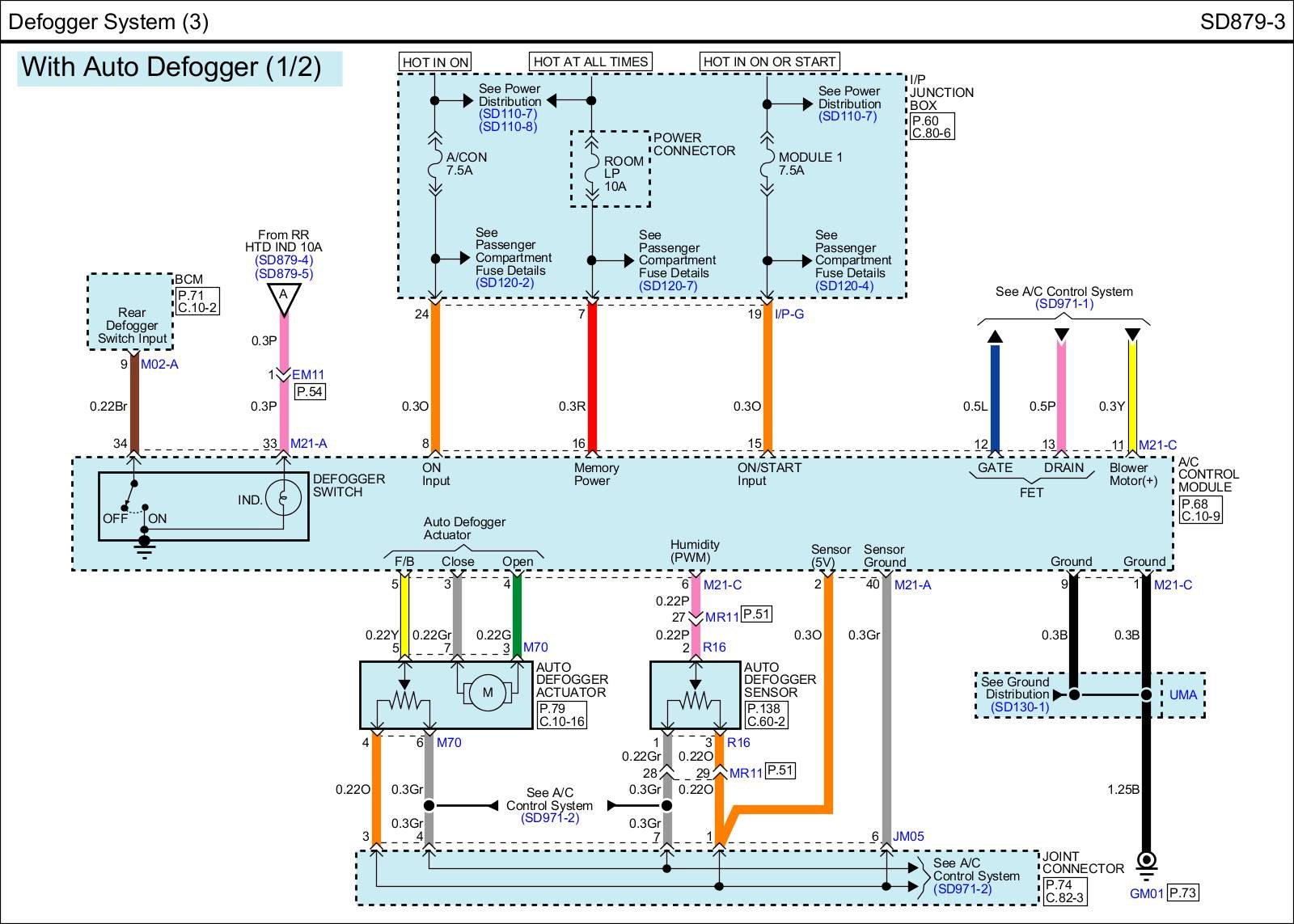

SD879-3 Defogger System (3):

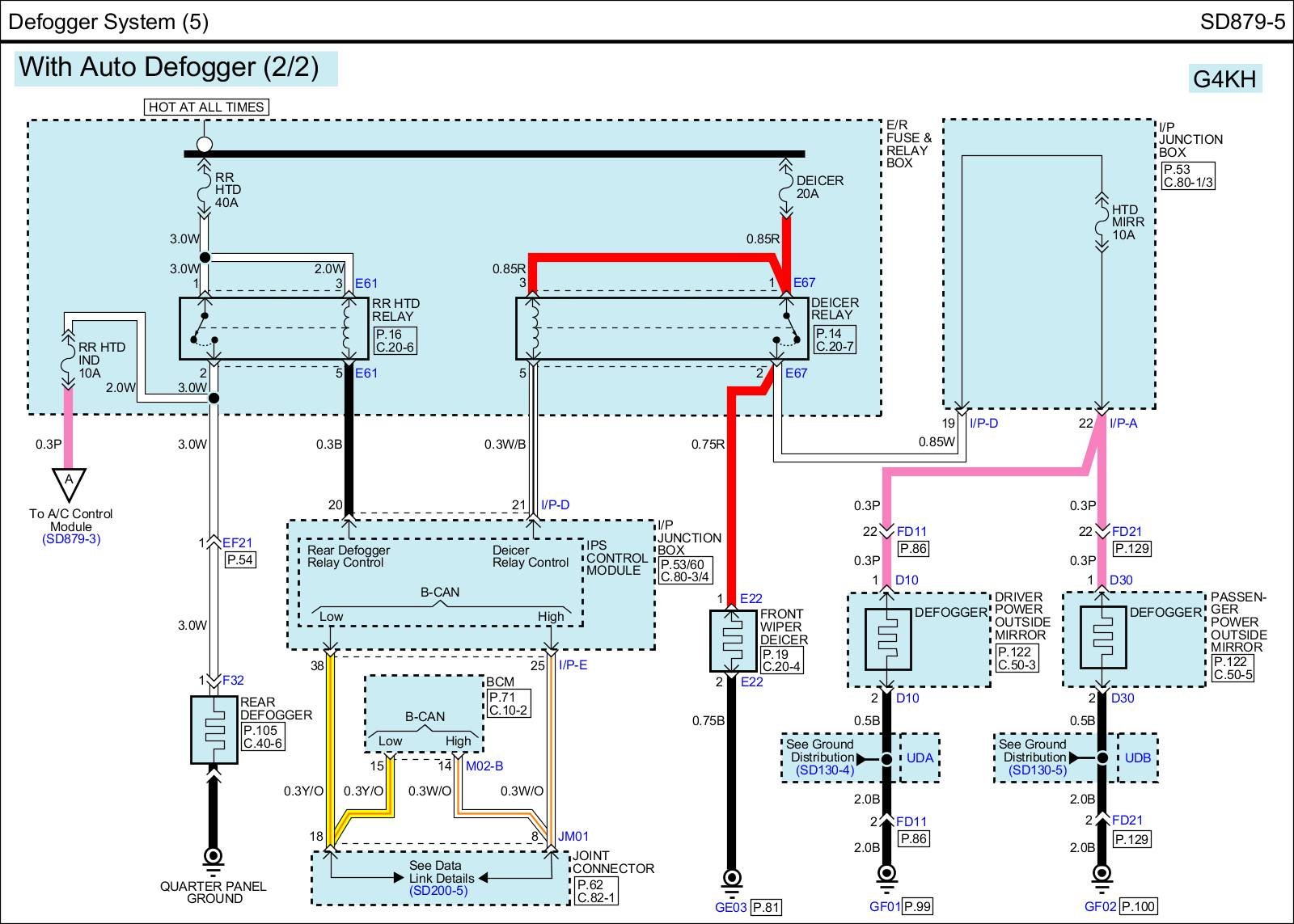

SD879-5 Defogger System (5):
