Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Shift Solenoid, A/T >> Torque Converter Control Solenoid Valve (T/CON VFS)

Torque Converter Control Solenoid Valve (T/CON VFS)

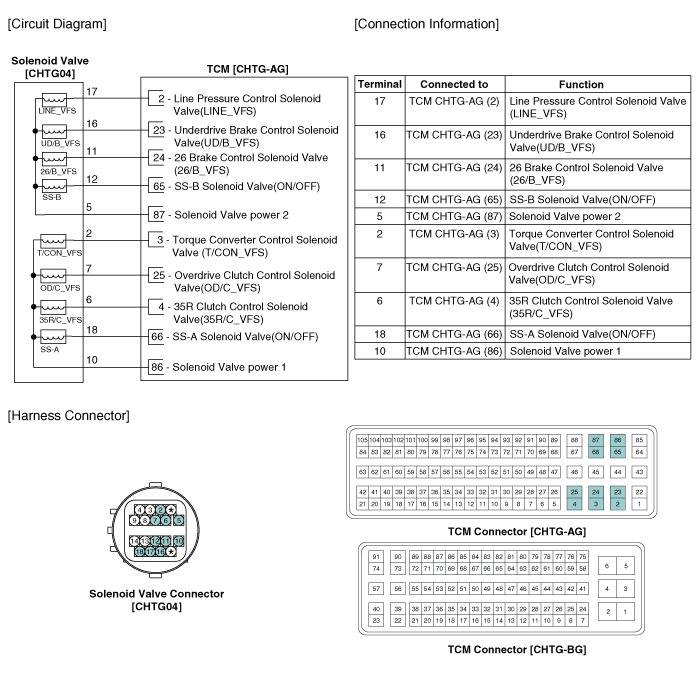

Circuit Diagram
