Optima L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
PCM
PCM

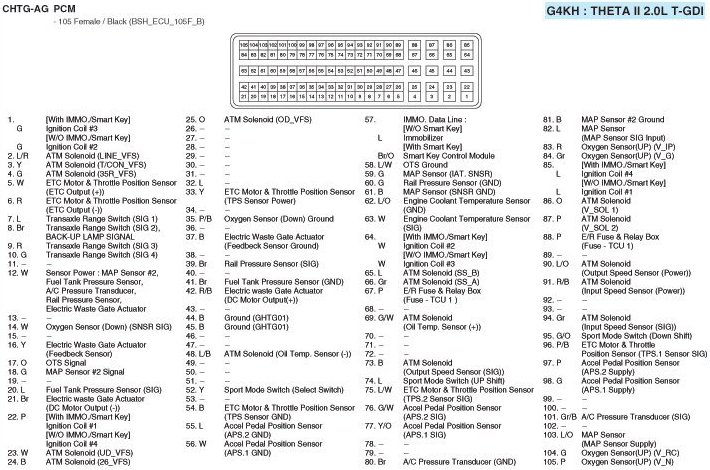

CHTG-AG PCM:

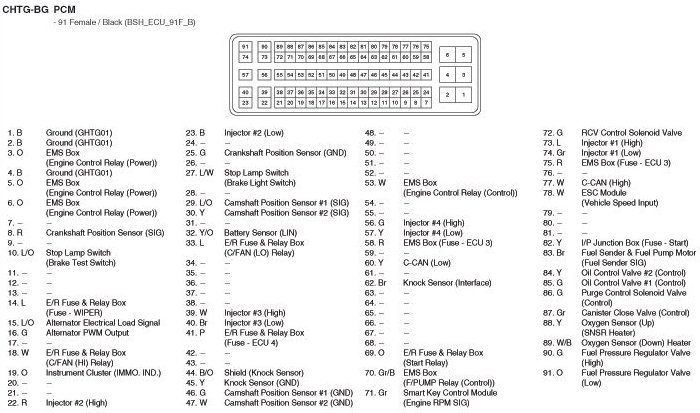

CHTG-BG PCM:
