Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M12 AUX & USB Jack (With Navigation/Bristol Audio)

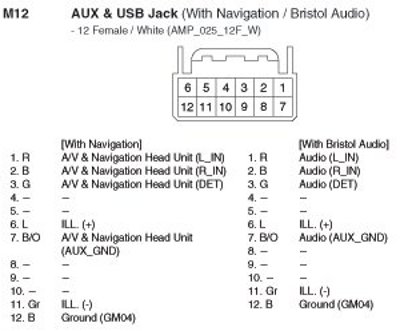

M12 AUX & USB Jack (With Navigation/Bristol Audio)

M12 AUX & USB Jack (With Navigation/Bristol Audio):
