Seat Heater

Inspection

First Seat Heater

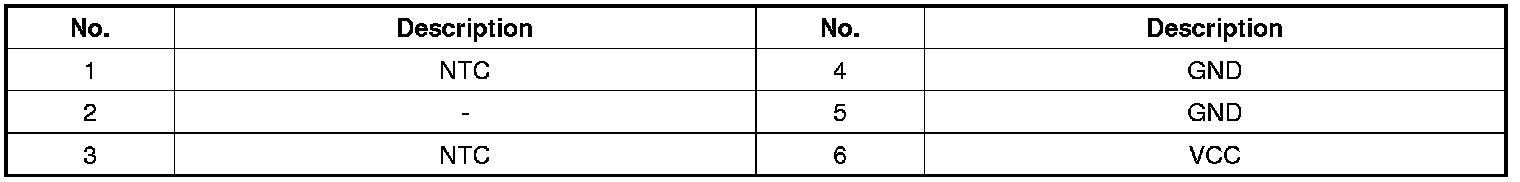

1. Check for continuity and measure the resistance between No.4 and No.6 terminals.

[Cushion]










[Back]





Standard value (Fabric / Leather)
Cushion :3.89 Ohms ± 10%
Back:3.11 Ohms ± 10% / 4.13 Ohms ± 10%
Set :7.0 Ohms ± 10% / 8.9 Ohms ± 10%

2. Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.

Standard value (Fabric / Leather)
Cushion :
1 Step : 40 ± 2°C(104 ± 3.6°F)
2 Step : 42 ± 2°C(107.6 ± 3.6°F)
Back :
1 Step : 46 ± 2°C(114.8 ± 3.6°F)
2 Step : 52 ± 2°C(125.6 ± 3.6°F)
