Speaker: Service and Repair

Inspection

1. Troubleshooting for Speaker

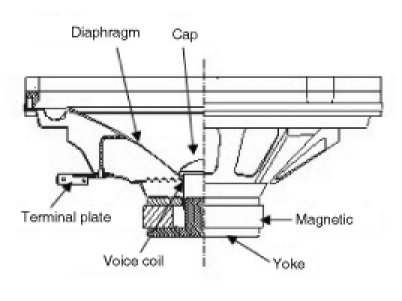

(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws are removed and the wiring connector is connected to remove any possible vibration transmitted from body trims and surrounding parts.

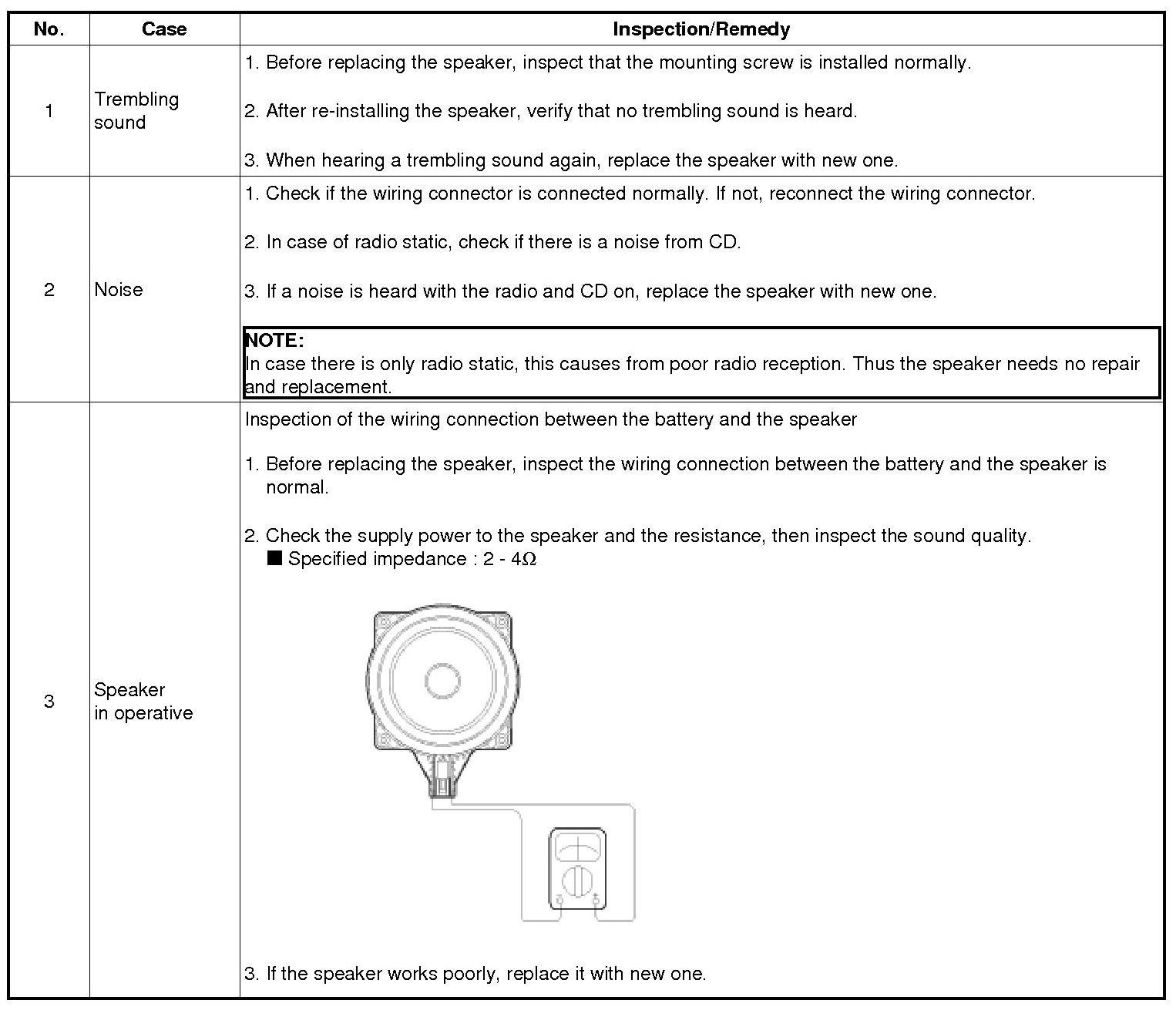

(2) Case Troubleshooting






CAUTION:
When handling the speakers:
- Do not damage the speaker with impact, like dropping or throwing it.
- Be careful not to drop water and oil on the speakers.
- Caution during handling of speaker because the material of diaphragm is paper which is easily torn by impact or external force.
- Modifying the audio system may cause damage the speakers. If this is the case, the speakers are not covered by the manufacturer's warranty.

Removal

Front Speaker
1. Remove the front door trim panel and speaker connector.

2. Remove the front speaker (A) after loosening 4 screws.





Rear Speaker
1. Remove the rear door trim panel and speaker connector.

2. Remove the rear speaker (A) after removing 4 screws.





Crash Pad Midrange Speaker
1. Remove the main crash pad.

2. Disconnect the midrange speaker connector (A).




3. Remove the crash pad side speaker grill (A).




4. Remove the midrange speaker (A) after loosening the mounting screws.





Subwoofer Speaker
1. Remove the rear seat forward.

2. Remove the rear package tray.

3. Disconnect the subwoofer speaker connector (A).
4. Remove the subwoofer speaker (B) after removing 4 bolts.





Center speaker
1. Remove the center speaker grill (A).





NOTE:
Apply the protective tapes to the speaker grill and its related parts.

2. Remove the center speaker (A) after loosening the mounting screws.





External Amp
1. Remove the trunk right luggage side trim.

2. Remove the external amplifier connector (A).




3. Remove the external amplifier (A) after loosening the mounting nuts.






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear door trim.

Crash pad midrange speaker
1. Install the midrange speaker.
2. Install the speaker grille.

Subwoofer Speaker
1. Install the subwoofer speaker after connecting the connector.
2. Install the rear package tray and rear seat assembly.

External Amp
1. Install the external amplifier after connecting the connector.
2. Install the trunk right luggage side trim.

NOTE:
- Make sure the speaker and related connectors are plugged in properly.

Center speaker
1. Install the center speaker.
2. Install the center speaker grill.
