Cellular Phone Microphone: Description and Operation
Function
Audio Bluetooth System
General Feature
- This audio system supports Bluetooth(R)hands-free and stereo-headset features.
- HANDS-FREE feature: Making or receiving calls wirelessly through voice recognition.
- The phone must be paired to the system before using the hands-free feature.
- STEREO-HEADSET feature: Playing music from cellular phones (that supportsA2DP feature) wirelessly.
- Voice recognition engine of the Bluetooth(R) system supports 3 types of languages:
- English
- US Spanish
- Canadian French
CAUTION:
If the vehicle is moving do not use a cellular phone or connect the Bluetooth phone.
NOTE:
- The phone must be paired to the system before using Bluetooth(R) features.
- Only one selected (linked) cellular phone can be used with the system at a time.
- Some phones are not fully compatible with this system.
Voice Recognition Activation
- The voice recognition engine contained in the Bluetooth System can be activated in the following conditions:
- Button Activation
The voice recognition system will be active when the
button is pressed and after the sound of a Beep.
- Active Listening
The voice recognition system will be active for a period of time when the Voice Recognition system has asked for a customer response.
- The system can recognize single digits from zero to nine while number greater than ten will not be recognized.
- If the command is not recognized, the system will announce "Pardon" or No input voice signal from microphone. (No response)
- The system shall cancel voice recognition mode in following cases : When pressing the
button and saying cancel following the beep. When not making a call and pressing the
button. When voice recognition has failed 3 consecutive times.
- At any time if you say "help", the system will announce what commands are available.

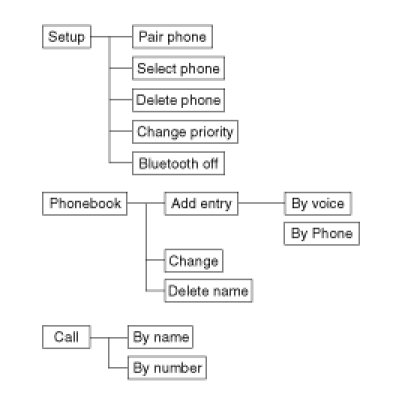

Menu tree
Phone Setup
All Bluetooth(R) related operations can beeper formed by voice command or by manual operation.
- By Voice Command:
Press
button on the steering wheel to activate voice recognition.
- By Manual Operation:
1. Push the [SETUP] button to enter SETUP mode.
2. Select "PHONE" item by rotating the TUNE knob, then push the knob.
3. Select desired item by rotating the TUNE knob, then push the knob.
4. Select Advanced item to enter ADVANCED mode.
Pairing phone
Before using Bluetooth(R) features, the phone must be paired (registered) to the audio system. Up to 5 phones can be paired in the system.
1. Press
button.
2. Say "Set Up".
- The system replies with available commands.
- To skip the information message, press
again and then a beep is heard.
3. Say "Pair Phone".
4. Say "Yes" to proceed.
5. Say the name of your phone when prompted.
- Use any name to uniquely describe your phone.
6. Bluetooth(R) system will repeat the name you stated.
7. Say "Yes" to confirm.
NOTE:
The system may not function in the following cases:
If 5 phones have already been registered. If the system cannot communicate with the phone.
Connecting phone
When the Bluetooth(R) system is enabled,the phone previously used is automatically selected and re-connected. If you want to select a different phone previously paired, the phone can be selected through "Select Phone" menu.Only a selected phone can be used with the hands-free system.
1. Press
button.
2. Say "Set Up".
3. Say "Select Phone" after prompt.
- The system lists all the registered phone names.
4. Say the name or number of desired phone from the list.
5. Say "Yes" to confirm.
6. By manual operation:
- Select "SELECT" in PHONE menu,then select desired phone from the list.
NOTE:
The system may not function in the following cases:
If the phone is not found.
If the system does not recognize the voice command.
Deleting phone
The paired phone can be deleted.
- When the phone is deleted, all the information associated with that phone is also be deleted (including phone book).
- If you want to use the deleted phone with the audio system again, pairing procedure must be completed once more.
1. Press
button.
2. Say "Set Up".
3. Say "Delete Phone" after prompt.
- The system lists all the registered phone names.
4. Say the name or number of desired phone from the list.
5. Say "Yes" to confirm.
6. By manual operation:
- Select "DELETE" in PHONE menu,then select desired phone from the list.
Changing Priority
When several phones are paired to the audio system, the system attempts to connect following order when the Bluetooth(R) system is enabled:
1) "Priority" checked phone.
2) Previously connected phone.
3) Gives up auto connection.
1. Press
button.
2. Say "Set Up".
3. Say "Change Priority" after prompt.
- The system lists all the registered phone names.
4. Say the name or number of desired phone from the list.
5. Say "Yes" to confirm.
6. By manual operation:
- Select "PRIORITY" in PHONE menu,then select desired phone from the list.
Bluetooth AVN System
- Bluetooth allows wireless transmission of information between PC, mobile phones, headsets, PDAs, printers and other devices within close ranges by using 2.45Ghz frequency short-distance wireless telecommunication technologies."
- Within this vehicle, users can make hands free calls, transmit mobile phone data, and play audio streaming files by connecting a mobile phone with the system.Functions supported by Functions supported by"
- Pairing mobile phones. (Up to 5 phones)
- Connecting/disconnecting mobile phones.
- Making/Answering phone calls.
- Downloading a Phone Book.
- Downloading a Call history list.
- Playing music saved in a Bluetooth phone in the vehicle Some functions may not be supported insome mobile phone.
in the vehicle
Some functions may not be supported insome mobile phone.
