Home >> Kia >> 2012 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Antenna - Keyless Entry >> Diagrams >> Smart Key Antenna #2

Smart Key Antenna #2

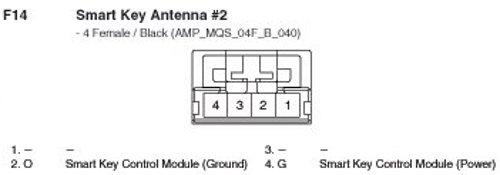

F14 Smart Key Antenna #2:
