U1112 LIN Communication Error - Inspection/Repair:_:Component Inspection

Component Inspection

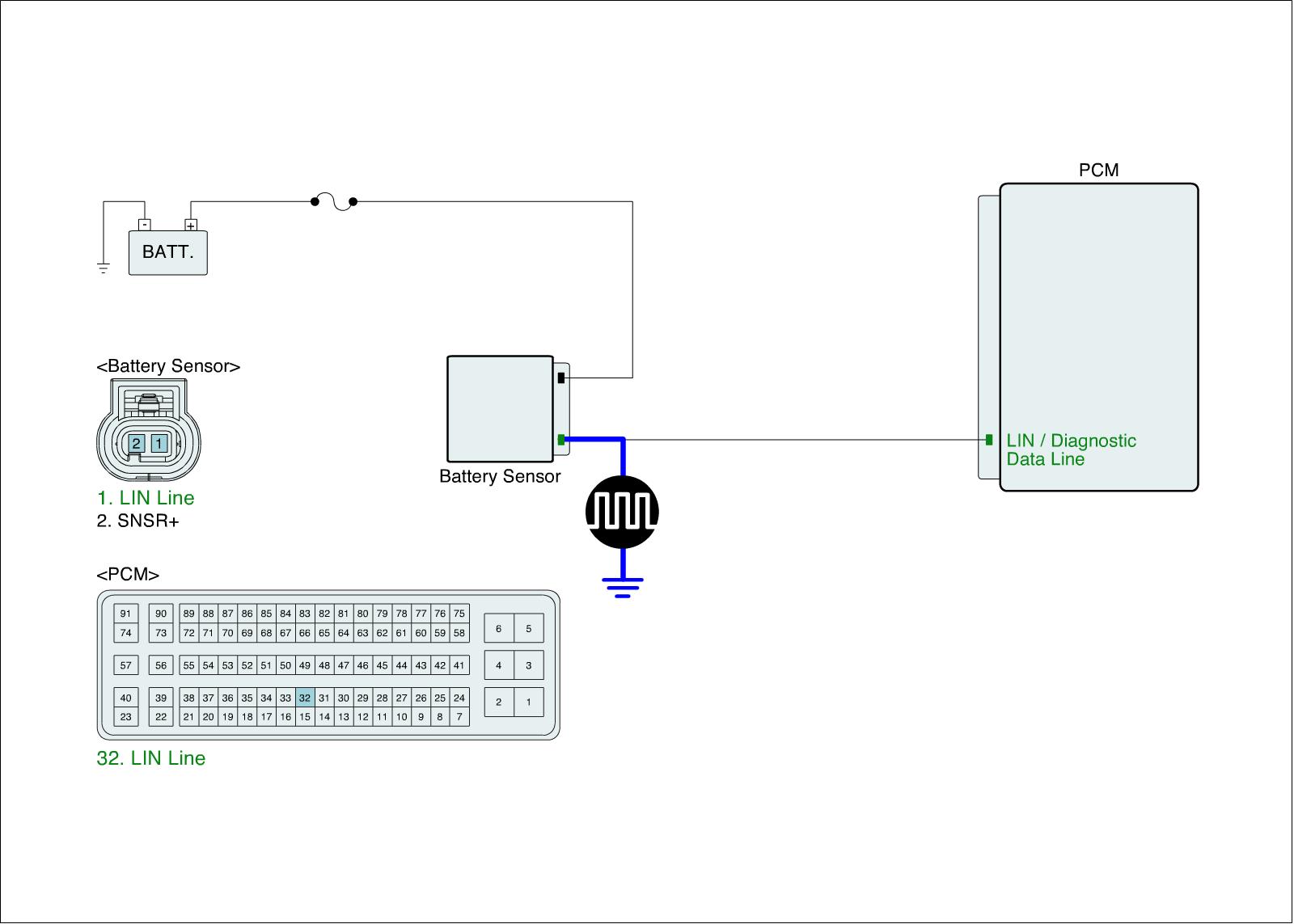

LIN communication line waveform check
1. IG "OFF".
2. Connect probe to battery sensor to check signal waveform by using oscilloscope function.
3. IG "ON" and monitor signal waveform.

Specification :Signal waveform will be displayed as Signal Waveform & Data

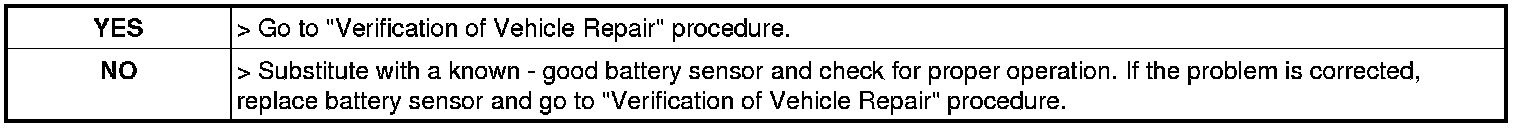

4. Is the measured signal waveform O.K?
