U1111 Battery Sensor fault detected by ECU - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON".
3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

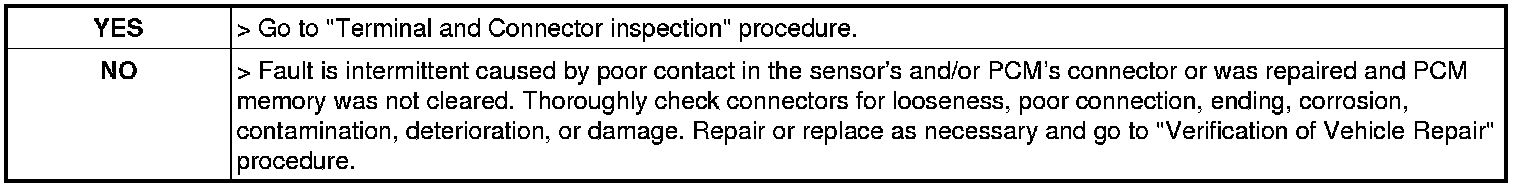

5. Is parameter displayed "Present fault"?
