Component Inspection

Engine Control
U0101 Lost Communication With TCM - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".

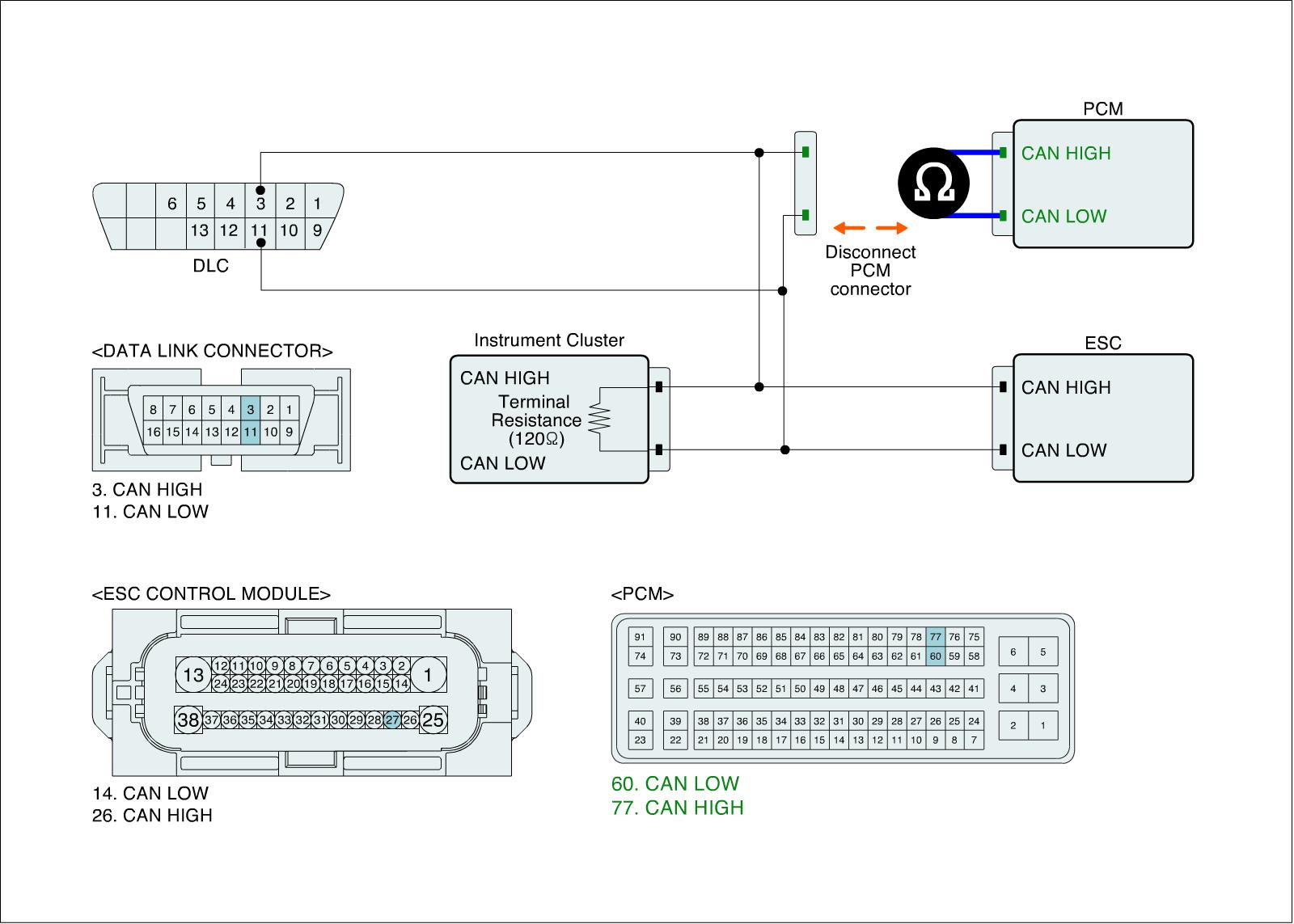

2. Measure resistance between High signal terminal and Low signal terminal of PCM connector(PCM side).

Specification :Approx. 110 - 130Ohms




3. Is resistance within the specification?
