Scantool Diagnostics

Automatic Transaxle
U0001 High Speed CAN Communication Bus off - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & engine "OFF".
3. Selet "Currnet Data"mode and monitor "Inhibitor switch" parameter.
4. Monitor the "CAN COMMUNICATION SERVICE DATA (ENGINE RPM, VEHICLE SPEED SENSOR, THROTTLE P. SENSOR)" parameters on the GDS.

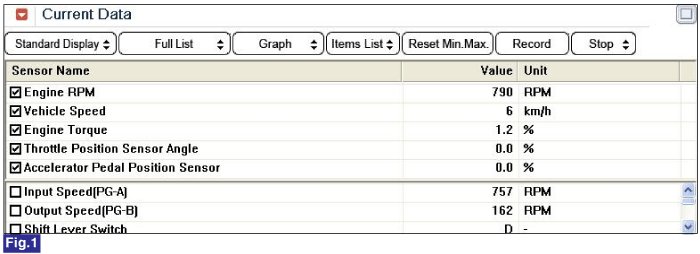

Fig 1) Low-RPM

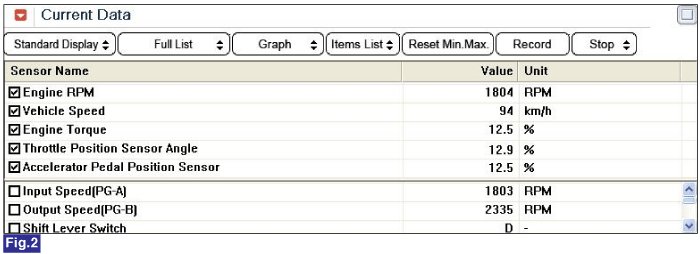

Fig 2) High-RPM

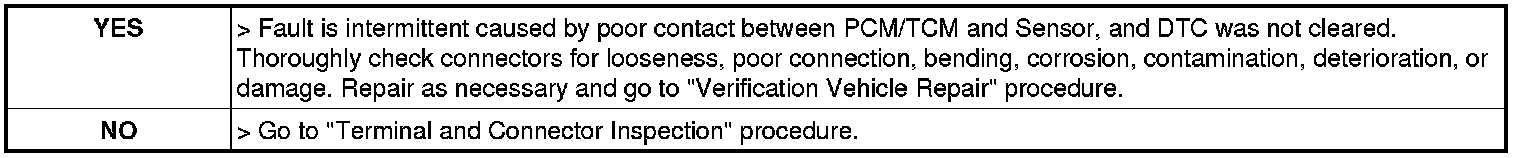

5. Is measured current datas within specification?
