Component Inspection
Engine Control
U0001 High Speed CAN Communication Bus off - Inspection/Repair:_:Component Inspection
Component Inspection
1. Ignition "OFF".

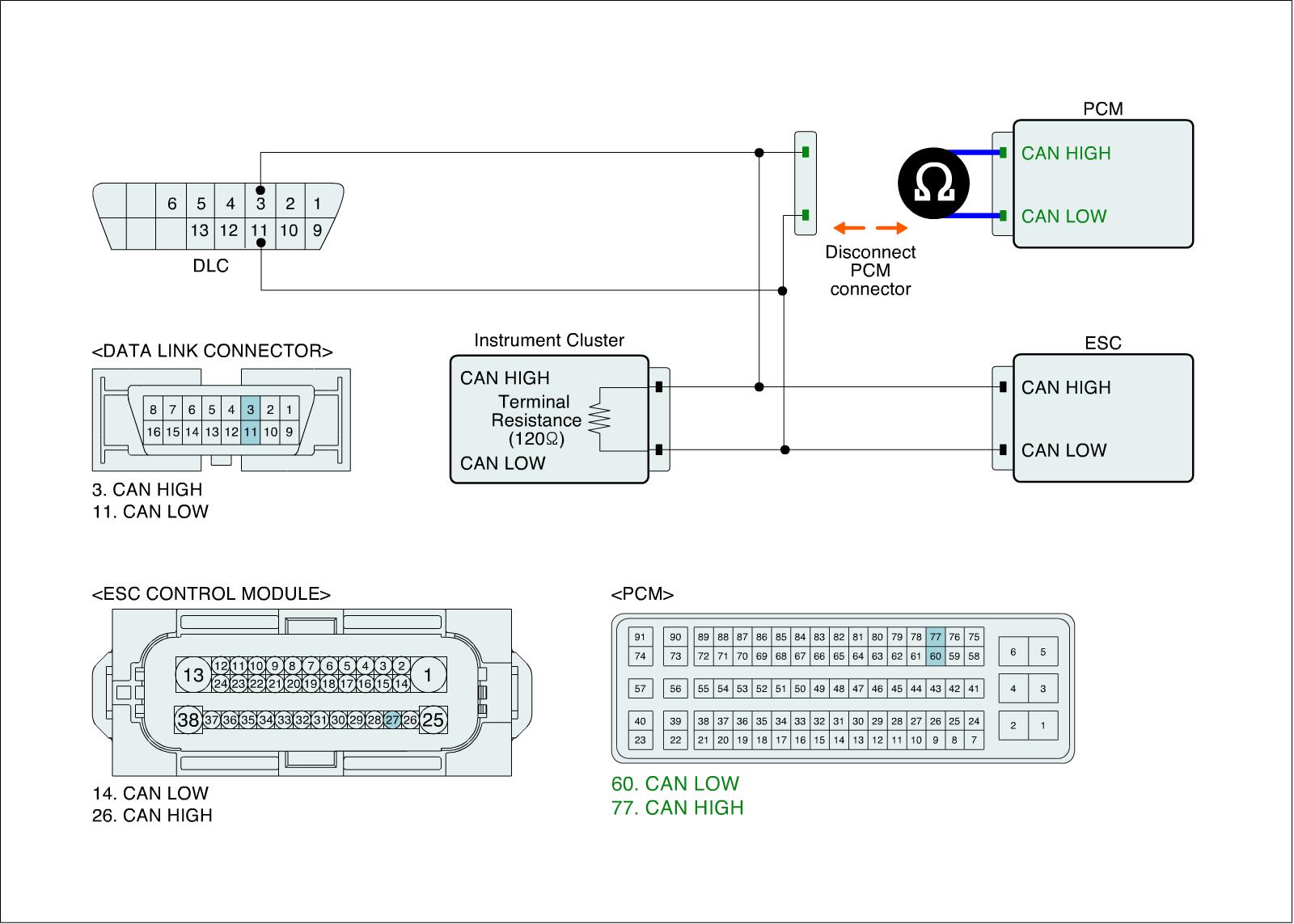

2. Measure resistance between High signal terminal and Low signal terminal of PCM connector(PCM side).
Specification :Approx. 110 - 130Ohms
3. Is resistance within the specification?
