P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B) - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON" & Engine "ON".
3. Driving 1st speed to 6th speed at D-range.
4. Selet "Currnet Data"mode and monitor "Shift Control Solenoid Valve(SS-B)" parameter current value.

Specification :See below data
































Fig 1) "P,N" range
Fig 2) "R" range
Fig 3) "D" range 1st gear
Fig 4) "D" range 2nd gear
Fig 5) "D" range 3rd gear
Fig 6) "D" range 4th gear
Fig 7) "D" range 5th gear
Fig 8) "D" range 6th gear
Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

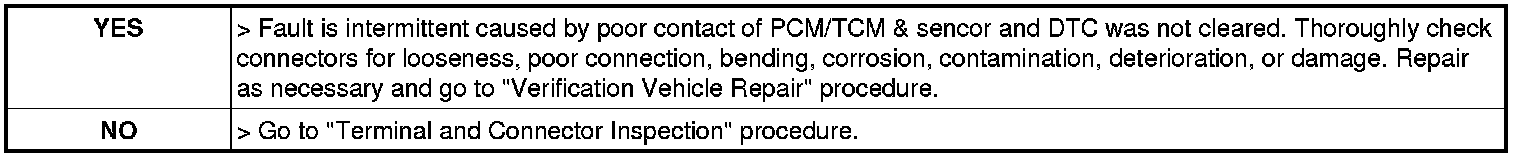

5. Is Shift Control Solenoid Valve(SS-B) within specification?
