General Information

Automatic Transaxle
P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B) - General Information

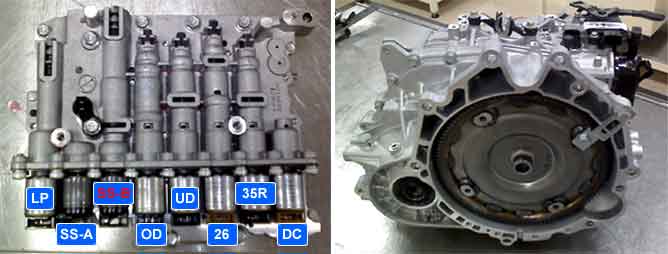

Component Location





General Description

Shift solenoid valve is ON/OFF type and changed a way of oil direction. PCM/TCM control solenoid valve to set gear speed position.

DTC Description

This code is set when circuit open or short detected by PCM/TCM.

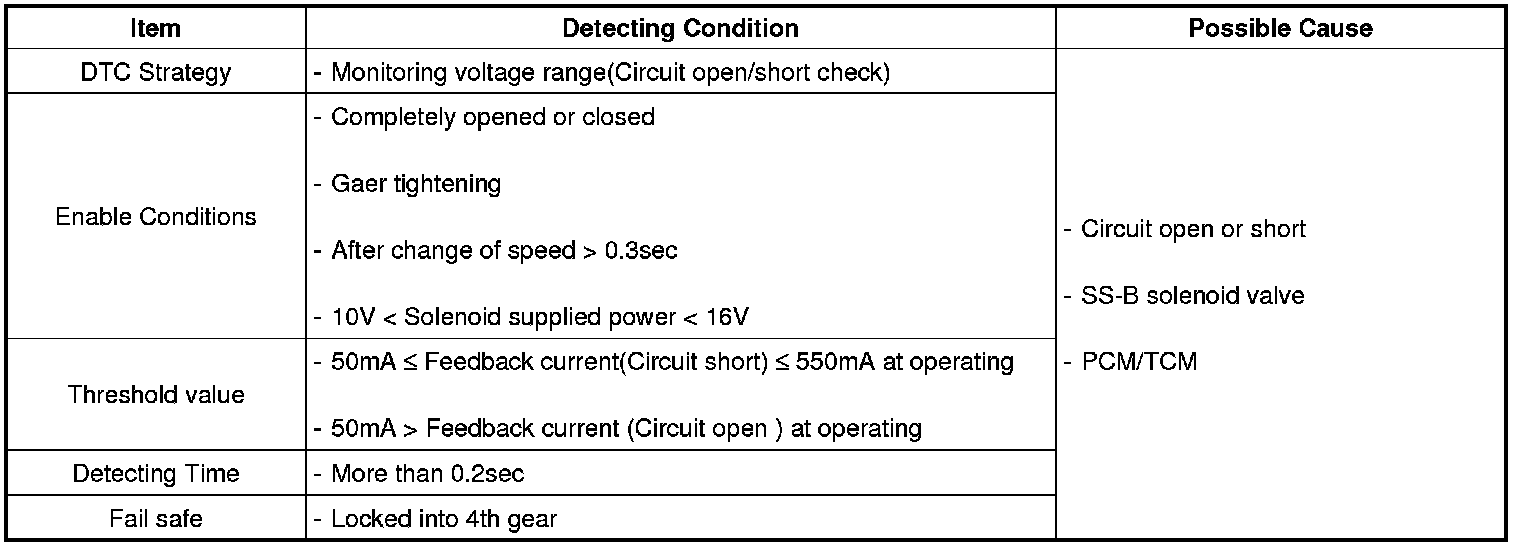

DTC Detecting Condition





Specification

Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

- Working voltage: under 7.5v (Supplied perssure 5.0kgf/cm2, Oil temperature 85°C)
- Release voltage: under 5.5v (Supplied perssure 5.0kgf/cm2, Oil temperature 85°C)
- Release current: under 5.5v (Supplied perssure 0.51kgf/cm2, Oil temperature 85°C)
- Inetrnal resistance : 10 - 11 Ohms( 20°C)

Diagnostic Circuit Diagram
